Product Details:
|
| Model: | MF-SCM500A | Speed: | 180 Pcs/hour |
|---|---|---|---|
| Max Size: | 430*780mm | Voltage: | 380/220V,3PH,50/60HZ |
| Application: | Short Run Printing Press | Usuage: | Case For Hardcover Books, Notebooks |
| High Light: | 80gsm Hard Cover Book Binding Machine,180pcs/H Hard Cover Book Binding Machine,140*140mm Album Cover Making Machine |
||

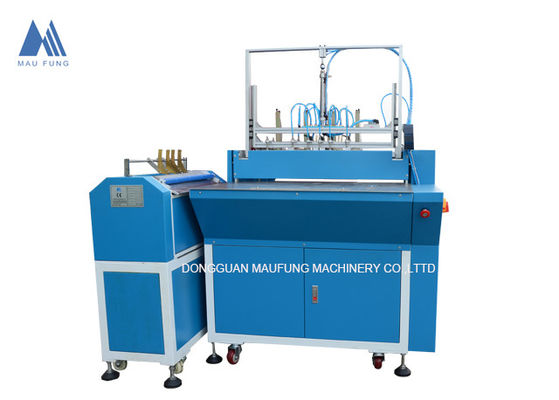

Album Cover Making Machine, Hard Back Making Machine for photo book MF-SCM500A
This Semi Auto Case Maker MF-SCM500A is mainly applied in covering and pressing various notebooks, photo books (photo album), folders, certificates, hardcover books. This process is finished easily at twice on both sides at the same time by one operator. It is the good partner of post-press, especially the digital post-press.
| Model | MF-SCM500A |
| Power Supply | 380V/220V, 50HZ |
| Mainframe Power | 5.2kw |
| Work Speed | 1-3PCS/minute |
| Paperboard Thickness | 1-4mm |
| Hard Case Spine Width(Min) | 9mm |
| Open Book Case Size(Max) | 780x430mm |
| Open Book Case Size(Min) | 140x140mm |
| Machine Dimensions(L×W×H) | 1780×1620×1400mm |
| Paper Thickness | 80-200g |
| Machine Weight | 550kg |
● Automatically cardboard pushing;
● Pneumatic foot switch
● PLC system
● Use hot melt glue
● Fast adjustment speed.
● Adjust the size of cardboard by rotating the hand wheel
● Light Tube inside the working table makes the position more precise.
