Product Details:
|
| Usuage: | Hard Cover Book, Notebook, Photo Book Binding Machine | Speed: | 400-600pcs/hour |
|---|---|---|---|
| Max Size: | 560*450mm | Min Size: | 90*60mm |
| Voltage: | 380/220V,3PH | Block Thickness: | 4-80mm |
| Application: | Printing House, Book Publisher, Book Manufacturer | Warranty: | 1 Year |
| High Light: | Hard Cover Book Binding Machine,Book Casing In Machine,Notebook Casing-In Machine |
||

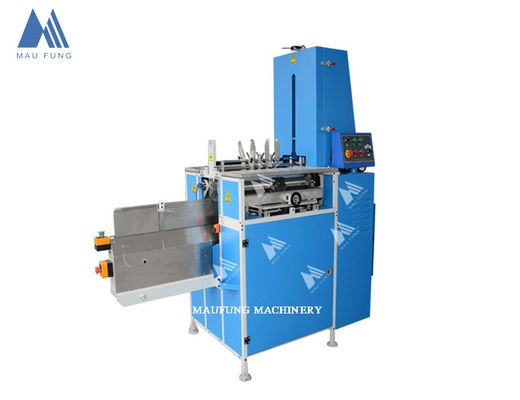

Big size Semi Auto Hard Cover Casing-In Machine MF-SKJ560
To those medium and small factories, hardcover book casing is time-consuming. In order to shorten time, labor and enhance poor efficiency in process of making hardcover books,we develop a semi auto casing machine based on part of the working principle of importing full-automatic casing machine. It not only removes the shortage of unbalance gluing, but also improves the gluing speed (once two sides).It is quick and precise in locating the hard cases and aligning the book block with cases.
| Model | MF-SKJ560 |
| Power Supply | 380V/220V, 50HZ |
| Mainframe power | 1.5kw |
| Work Speed | 7-10PCS/minute |
| The Book Block Thickness | 4-80mm |
| Block Size(max) | 560x450mm |
| Block size(min) | 90*60mm |
| Machine Dimensions(L×W×H) | 2200×900×1950mm |
| Machine Weight | 580kg |
