Product Details:
|
| Model: | MF-HBM420 | Speed: | 700 Pcs/hour |
|---|---|---|---|
| Max Size: | 350x420mm | Min Size: | 100*100mm |
| Thickness: | 10-60mm | Voltage: | 220V,1PH |
| Warranty: | 1 Year | Application: | Notebooks, Hard Cover Books, Diaries,etc |
| High Light: | 60mm Block Book Banding Machine,700pcs/h Hardcover Book Binding Machine,350x420mm book block head band machine |
||

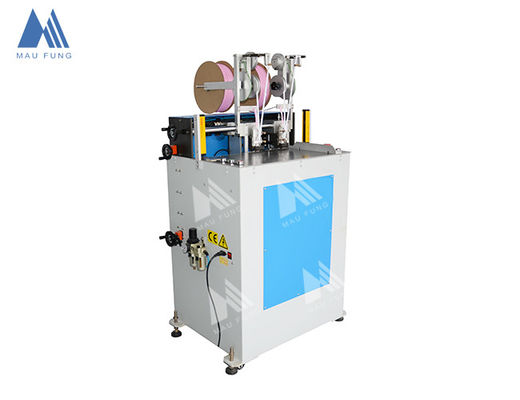

Book Block Head Band Machine MF-HBM420 is a flexible and compact machine for the application of head and tail band on round and square book blocks. It is the perfect solution for medium and small book binding companies.The head band is joined to the glue strip before being applied to the book spine. The machine does not require cleaning at the end of the production.
| Model | MF-HBM420 |
| Power Supply | 220V, 1 Phase, 50HZ |
| Mainframe Power | 1.5KW |
| Air Compressor | 6Bar |
| Machine Speed | 11 PCS/ Minute |
| Book Block Thickness | 10-60mm |
| Book Block Size(Max) | 350x420mm |
| Book Block Size(Min) | 100x100mm |
| Machine Dimensions(L×W×H) | 700×850×1550mm |
| Machine Weight | 270kg |
