| Place of Origin: | China |
| Brand Name: | MAUFUNG |
| Certification: | CE |
| Model Number: | MF-HBM420 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden package for exports |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
| Model: | MF-HBM420 | Speed: | 700 Pcs/hour |
|---|---|---|---|
| Highlights: | Round / Square Back | Max Size: | 350x420mm |
| Min Size: | 100*100mm | Thickness: | 10-60mm |
| Voltage: | 220V,1PH | Warranty: | 12 Months |
| Highlight: | 700pcs/H block head band machine,11PCS/Min Book Back Rounding Machine,60mm Block Book Back Rounding Machine |
||

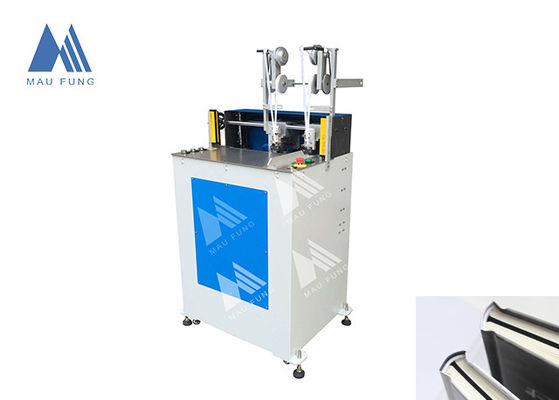

Head and Tail Banding Machine for Round Back Book , Roundback Book Binding MachineMF-HBM420
Book Head and Tail Banding Machine MF-HBM420 is designed for pasting the head and tail band onto the round and square book blocks. It is the perfect solution for medium and small book binding companies. This model automatically delivers down the head band and tape, automatically pastes the double adhesive tape to the head band, autommatically cuts off the head band. The machine does not require cleaning and is very easy to opperate.
| Model | MF-HBM420 |
| Power Supply | 220V, 1 Phase, 50HZ |
| Mainframe Power | 1.5KW |
| Air Compressor | 6Bar |
| Machine Speed | 11 PCS/ Minute |
| Book Block Thickness | 10-60mm |
| Book Block Size(Max) | 350x420mm |
| Book Block Size(Min) | 100x100mm |
| Machine Dimensions(L×W×H) | 700×850×1550mm |
| Machine Weight | 270kg |
