| Place of Origin: | China |
| Brand Name: | MAUFUNG |
| Certification: | CE |
| Model Number: | MF-400A |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden package for exports |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
| Model: | MF-400A | Stamping Size: | 390x390mm (max) |
|---|---|---|---|
| Function: | Bundling | Usuage: | Gold Stamping Machine |
| Warranty: | 12 Month | Condition: | New |
| Application: | Bibles, Diaries, Notebooks, Etc | After-sales Service Provided: | Online Support,Video Technical Support,Engineers Available To Service Machinery Overseas |
| Highlight: | 70x70mm Book Block Pressing Machine,1.5KW Binding Press Machine,MAUFUNG Hydraulic Binding Press Machine |
||

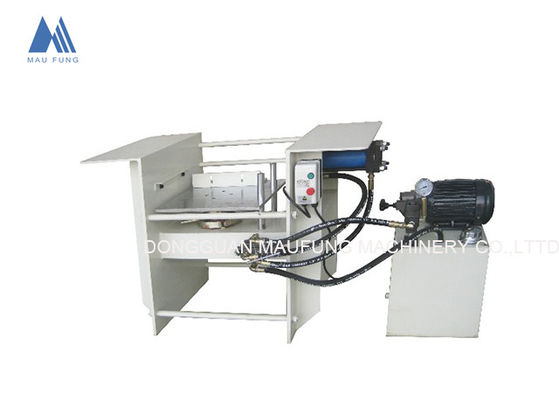

Book Block Pressing Machine for Edge Foil Stamping , Rouned Book Binding Machine MF-400A
Model MF-400A is the equipment for book edge stamping. It is the first step for book edge gold stamping. Its function is to Bundle and press the blocks in same size tightly for grinding and stamping process. The model uses the hydraulic system with large pressure.The clamp can be rotated 360 degrees, so it is convenient for next processes.
| Model | MF-400A |
| Rated Voltage | 380V/220V, 50HZ |
| Rated Power | 1.5KW |
| Max Bundling Range | 390x390mm |
| Min Bundling Range | 70x70mm |
| Machine Dimensions(L×W×H) | 1500x600x820mm |
| Machine Weight | 480kg |
1. Bundling and pressing the book block by model MF-400A
2. Grinding the block edge by model MF-400A
3. Hot foil Stamping by Model MF-400C
