| Place of Origin: | China |
| Brand Name: | MAUFUNG |
| Certification: | CE |
| Model Number: | MF-DCM470 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden package for exports |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
| Model: | MF-DCM470 | Cutting Size: | 490*450mm (max) |
|---|---|---|---|
| Thickness: | 100mm (max) | Speed: | 23 Times/min |
| Supply: | Pneumatic Air | Warranty: | 12 Months |
| Usuage: | Notebook Corner Cutting Machine | Application: | Notebooks, Hard Cover Books, Invitation Cards |
| Highlight: | 860×380mm Electric Corner Rounder,250W Electric Corner Rounder,490*450mm Soft Cover Book Binding Machine |
||

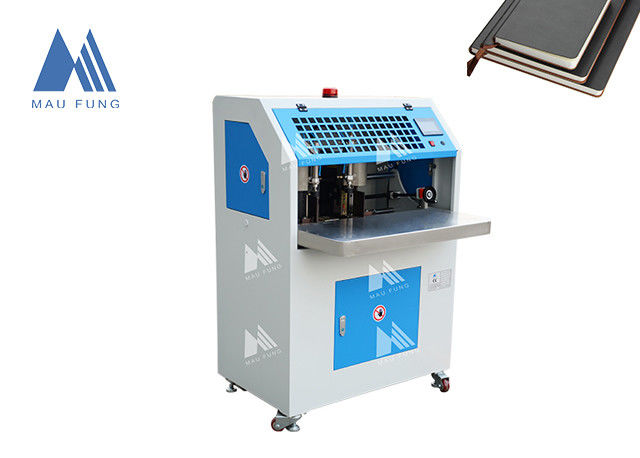

Double-head Notebook Round Corner Cutting Machine , Notebook Binding Machine MF-DCM470
This machine is the paper round corner cutting machines. It is widely applied in notebooks, diaries, invitation cards, trademarks, business cards, book covers, etc
| Model | MF-DCM470 |
| Max Paper size | 490×450mm |
| Min Paper size | 105×50mm |
| Round corner mold | 1/8'',3/16'',1/4'',5/16'',3/8'',7/16'',1/2'',9/16'',5/8'',3/4'',7/8'', 1' |
| Working Table size | 860×380mm |
| Cutting thickness | 100mm |
| Working Speed | 23 times/min |
| Air pressure | 6-8 bar |
| Voltage | 220V,50HZ |
| Power | 250W |
| Machine Dimensions(L×W×H) | 960×870×1390mm |
| Machine Weight | 220kg |
| Standard accessories | Equip with one mold from 1/8'''-1'' |
Contact Person: Marry Qu
Tel: 86-13763211611
Fax: 86-0769-21662570
