Product Details:
|
| Model: | MF-HBM420 | Speed: | 700-1200 Pcs/hour |
|---|---|---|---|
| Max Size: | 350x420mm | Min Size: | 100*100mm |
| Thickness: | 10-60mm | Voltage: | 220V,1PH |
| Warranty: | 1 Year | Application: | Notebooks, Hard Cover Books, Diaries,etc |
| High Light: | 1PH Hardcover Book Binding Machine,220V Hardcover Book Binding Machine,1.5KW Hard Case Making Machine |
||

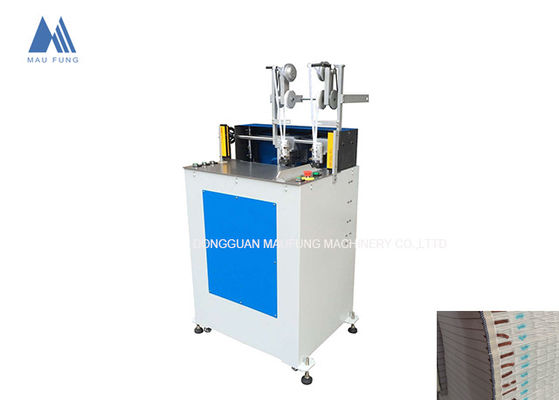

Maufung Book Head And Tail Band Machine Book Back Binding Machine MF-HBM420
Book Block Head Band Machine MF-HBM420 is an easy operation machine for applying head and tail band on round and square book blocks. It is the perfect solution for medium or small book binding companies.The head band is joined to the double adhesive tape before being applied to the book spine. The machine does not require cleaning at the end of the production.
| Model | MF-HBM420 |
| Power Supply | 220V, 1 Phase, 50HZ |
| Mainframe Power | 1.5KW |
| Air Compressor | 6Bar |
| Machine Speed | 11-20 PCS/ Minute |
| Book Block Thickness | 10-60mm |
| Book Block Size(Max) | 350x420mm |
| Book Block Size(Min) | 100x100mm |
| Machine Dimensions(L×W×H) | 700×850×1550mm |
| Machine Weight | 120kg |
