| Place of Origin: | China |
| Brand Name: | MAUFUNG |
| Certification: | CE |
| Model Number: | MF-DCM470 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD/EUR/CNY |
| Packaging Details: | Wooden package for exports |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
| Supply Ability: | 50 Sets/month |
| Model: | MF-DCM470 | Cutting Size: | 490*450mm |
|---|---|---|---|
| Max Thickness: | 80mm | Speed: | 20-25 Times/min |
| Supply: | Pneumatic | Warranty: | 1 Year |
| Usuage: | Board Books Coner Cutting Machine | Application: | Corner Cutting For Various Products |
| Highlight: | Pneumatic Notebook Round Corner Cutting Machine,250w 50hz Round Corner Cutting Machine,Double Head Notebook Round Corner Cutter |
||

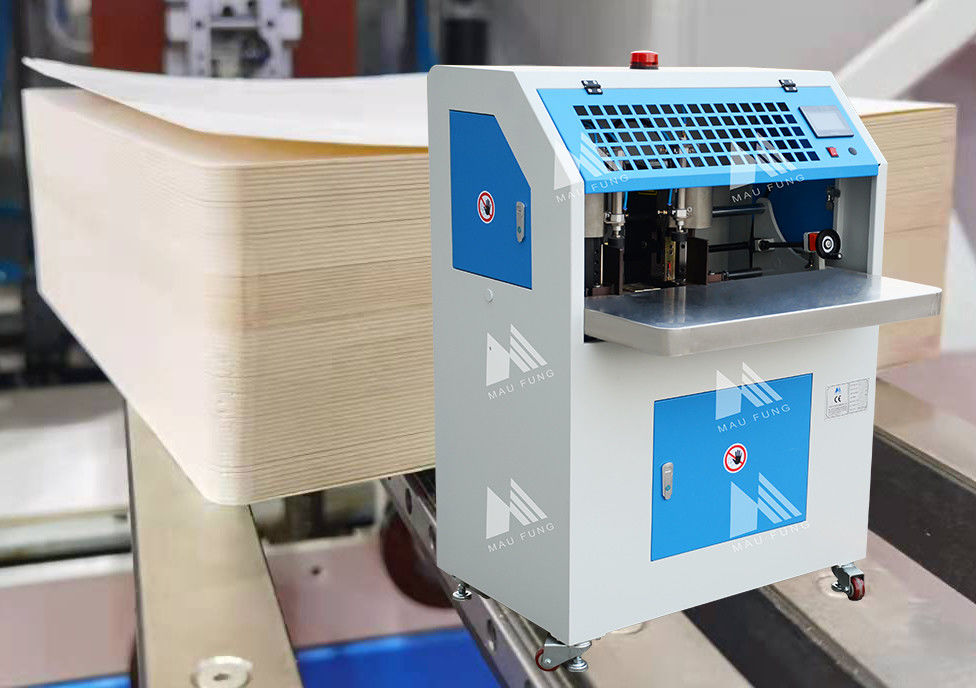

This machine is used for paper double head round corner cutting. It is right for the corner cutting of children board books, invitation cards, trademarks, calendar, business cards, book covers, diaries, board to board books, notebooks,etc.
Brouchure:Corner Cutting Machine.pdf
| Model | MF-DCM470 |
| Max Paper size | 490×450mm |
| Min Paper size | 105×50mm |
| Round corner mold | 1/8'',3/16'',1/4'',5/16'',3/8'',7/16'',1/2'',9/16'',5/8'',3/4'',7/8'', 1' |
| WorkingTable size | 860×380mm |
| Thickness | 100mm |
| Working Speed | 23 times/min |
| Air pressure | 6-8 bar |
| Voltage | 220V,50HZ |
| Power | 250W |
| Dimensions(L×W×H) | 960×870×1390mm |
| Weight | 220kg |
| Standard accessories | Equip with one mold from 1/8'''-1'' |
1. What is machine warranty?
--- one year FREE warranty, whole life technique support.
2. Are you a manufacturer?
--- Yes, we are a manufacturer located in Dongguan City.
3. Is engineer installation service available?
--- Yes, we provide online technique support and also engineer installation service.
4. How about after-sales service process?
--- When your machine has problem, contact us and we will assist you immediately .
5. Does your machine have CE certificate?
--- Yes.
6. What is the production time after placing order?
--- Around 7-30 day
7. Does the packing strong?
---- Yes, of course! All of our export packing is with strong wooden case, all are confirm to export packing standard.
8. Do you inspect machines before delivery?
---- Yes, we will test machine by our QC department before delivery.
