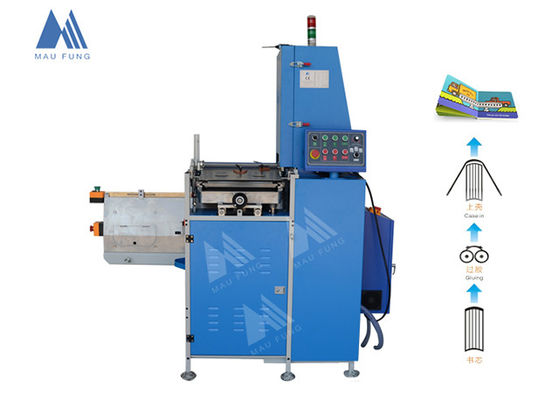

MAUFUNG Children Cartoon Book Casing In Machine Board Book Making Machine MF-SKJ380AS

MAUFUNG Children Cartoon Book Casing In Machine Board Book Making Machine MF-SKJ380AS
MAUFUNG Children Cartoon Book Casing In Machine Board Book Making Machine MF-SKJ380AS
MAUFUNG Children Cartoon Book Casing In Machine Board Book Making Machine MF-SKJ380AS MAUFUNG Children Cartoon Book Casing In Machine Board Book Making Machine MF-SKJ380AS

Large Image :  MAUFUNG Children Cartoon Book Casing In Machine Board Book Making Machine MF-SKJ380AS

Product Details:
Place of Origin: China
Brand Name: MAUFUNG
Certification: CE
Model Number: MF-SKJ380AS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD CNY EUR
Packaging Details: Wooden package for exports
Delivery Time: 7-15 days
Payment Terms: T/T
Supply Ability: 100 sets/month

MAUFUNG Children Cartoon Book Casing In Machine Board Book Making Machine MF-SKJ380AS

Description
Model: MF-SKJ380AS Speed: 1-17 PCS/min
Highlights: 1cm Not Gluing Max Size: 360*270mm
Voltage: 380/220V,3PH Min Size: 90*60mm
Block Thickness: 4-60mm Function: Board Book Casing IN Machine
High Light:

Children Board Book Casing In Machine

,

17pcs/minute Casing In Machine

,

17pcs/minute Board Book Machine

Description:



Book Casing in Machine MF-SKJ380AS (with soft cover mold) is designed for Soft Cover book. It is widely used for the production of luxury leather notebook, diaries, paper cover books with sewing or stitching block and also the children board to board books. It is right for medium run with max 17 pcs per minute.



Parameters:



Model MF-SKJ380AS
Power Supply 380V/220V, 50HZ
Mainframe power 1.5kw
Work Speed 0-17PCS/minute (Adjustable Speed)
The Book Block Thickness 4-60mm
Hard Case Chipboard Size(Max) 360x260mm
Hard Case Chipboard Size(Min) 90x60mm
Machine Dimensions(L×W×H) 1820×930×2100mm
Machine Weight 540kg



Features:



Widely Aplication: Right for soft cover book, support the full page gluing or 1 cm not gluing for board to boad books.



MAUFUNG Children Cartoon Book Casing In Machine Board Book Making Machine MF-SKJ380AS 0



Adjustable Speed: Speed range 0-1000 books/hour (17 books/minute).

Adjustable pause time: The pause time when the machine goes up to the highest point is controlled by the outside time relay. The users can adjust the time upon their needs.

Inch in Operation: Add inch-in switch for precise aligning during machine debugging .

Automatic power off function: The machine motor will stop running if not operating in 10 minutes. It guarantee the operator safety and greatly extend the machine working life.

High Quality components: We apply the famous brand, such as Mutsubishi PLC, Frequency converter,Omorn relay, and so on.



About us:



Our company mainly produce Photo Book Lay Flat Machine, Book Block Head Band Machine, Semi Auto Case Maker, Hard Cover Book Case In Machine, Hard Cover Book Pressing & Creasing Machine, Book Block Rounding Machine, fully automatic punching machine, Auto Round Corner Cutting Machine, Automatic covering machine, automatic paper feeding and pasting machine, book Nipping machine, Elastic Band Inserting Machine, hydraulic impacting spine machine, etc. Regarding as a developing manufacturing and marketing company, we the professional equipment post-printing packaging company possess our independent well-known brands MAUFUNG. Products sell well not only in China and but also more than 100 countries in the world, such as the United States, the European countries, Netherlands, Australia, New Zealand, Southeast Asia, Russia, the Middle East and Africa,etc.



We have a large number of professional machinery technical engineers devoting in improving the machinery production technique. On constantly upgrading product quality and after-sales service, we also focus on self-developing adhering to “People-oriented Principle, Quality for Survival Strategy, Credibility for Development Strategy” and “Rooting in Quality, Developing via Brand” strategy. We offer thoughtful after-sale service including installation, adjustment and maintenance service for the machine. First-class production equipments, first-class technical force, first-class quality and first-class service make us win the trust from numerous companies at home and abroad.



MAUFUNG Children Cartoon Book Casing In Machine Board Book Making Machine MF-SKJ380AS 1
