Product Details:
|
Max Speed: | 450 PCS/hour | Max Size: | 380*270mm |
---|---|---|---|
Min Size: | 90*60mm | Voltage: | 380/220V,3PH |
Block Thickness: | 4-60mm | Highlights: | Auto Case Delivering, Auto Casing In, Auto Forming Pressing |
Usuage: | Hard Case Book, Notebook, Photo Album Making Machine | Application: | Printing Press, Publisher, Notebook Bindery, Book Shop |
High Light: | Auto Forming Pressing Casing In Machine,Auto Delivering Casing In Machine,PLC Controlling Book Casing In Machine |

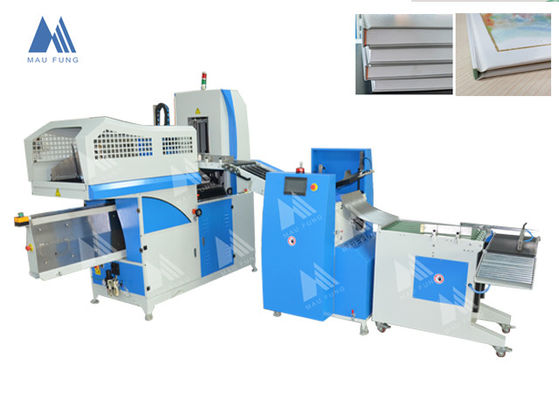

Automatic Book Casing in and Joint Forming Machine MF-FAC390 is widely applied in diaries, photo albums and other hard cover books. It is designed for print finishing process. We adopt the PLC controlling systems with touch screen operating systems. Less operating technique is required. It will auto push the cases, auto combine the cases with blocks, auto nipping and joint forming, and auto stack the finished books.
This machine consist of three parts: Auto Casing in Part, Auto Pressing & Creasing Part, Auto collecting part.
1. CASING IN PART:
2. PRESSING & CREASING PART
3.COLLECTING PART:
Model | MF-FAC390 |
Power Supply | 380V, 50HZ |
Mainframe Power | 7.2kw |
Block Thickness | 4-60mm |
Block Size (Max) | 390*297mm |
Block Size (Min) | 100*100mm |
Max On-line Speed | 450 pcs/hour |
Dimension(L*W*H) | 3890*2650*2000mm |
Weight | 1500KG |
As a company who integrates developing,manufacturering and selling, we take quality and service as the core of our business.
We Dongguan Maufung Machinery is a manufacturer specializing in book post press binding machines and rigid box making machines. We mainly produce Photo Book Lay Flat Machine, Book Block Head Band Machine, Semi Auto Case Maker, Hard Cover Book Case In Machine, Book Block Rounding Machine, Elastic band inserting Machine, Ribbon pasting Machine, Wire Book Binding Machines, Rigid Box Making machines,etc.
We have a large number of professional machinery technical engineers devoting in improving the machinery production technique. On constantly upgrading product quality and after-sales service, we also focus on self-developing adhering to “People-oriented Principle, Quality for Survival Strategy, Credibility for Development Strategy” and “Rooting in Quality, Developing via Brand” strategy. We offer thoughtful after-sale service including installation, adjustment and maintenance service for the machine. First-class production equipments, first-class technical force, first-class quality and first-class service make us win the trust from numerous companies at home and abroad.
