| Place of Origin: | China |
| Brand Name: | MAUFUNG |
| Certification: | CE |
| Model Number: | MF-FQ1350A |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD/EUR/CNY |
| Packaging Details: | Wooden package for exports |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
| Model: | MF-FQ1350A | Cardboard Max Size: | 1300 X 1250 Mm |
|---|---|---|---|
| Cardboard Min Size: | 120 X 150 Mm | Cardboard Max Size (auto Feeding): | 1250 X420 Mm |
| Cardboard Min Size (auto Feeding): | 250x 150 Mm | Cutting Thickness: | 1 - 4 Mm |
| Speed: | 63 M/min | Automatic Feeding Speed: | 30 - 150 Sheets/min |
| Cutting Knife: | 7 Couples | Motor Power: | 2.2 Kw |
| Machine Dimensions(L×W×H): | 1810 X 2130 X 1600 Mm | Machine Weight: | 2650 Kg |
| Highlight: | Intelligent cardboard slitter machine,Paperboard cardboard slitter machine,1 - 4 mm cardboard slitter machine |
||

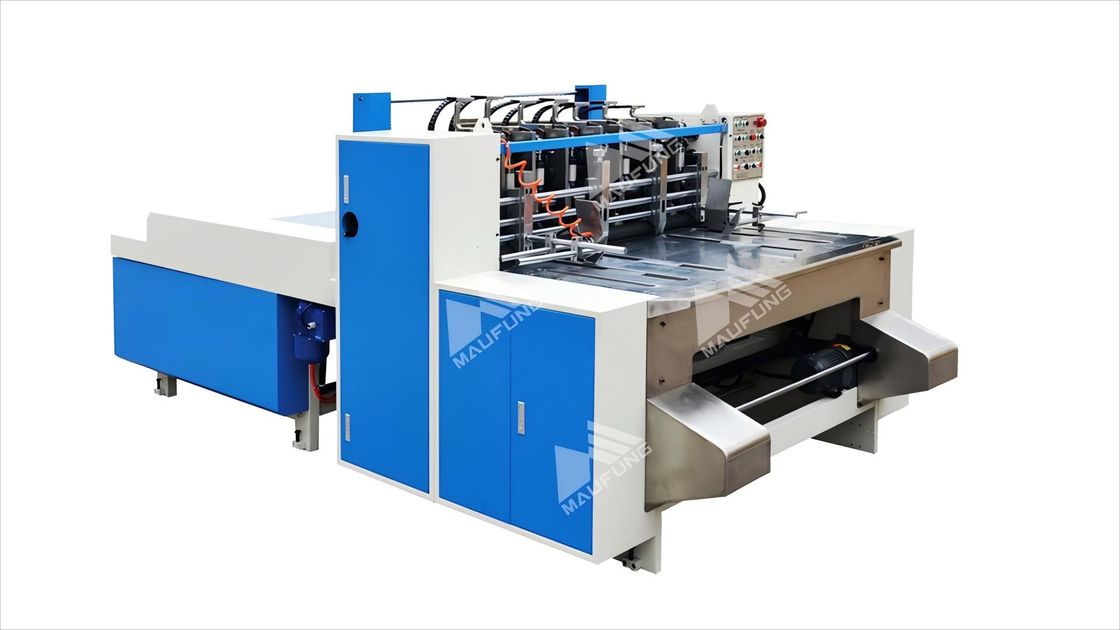

Paperboard Slitter Machine is the special machine developed for cutting heavy book board, card board. It is a ideal equipment for case book cover, file board, color carton and hard exercise books. This machine possesses reasonable structure, simple operation, smooth cutting edge, high accuracy and high efficiency.

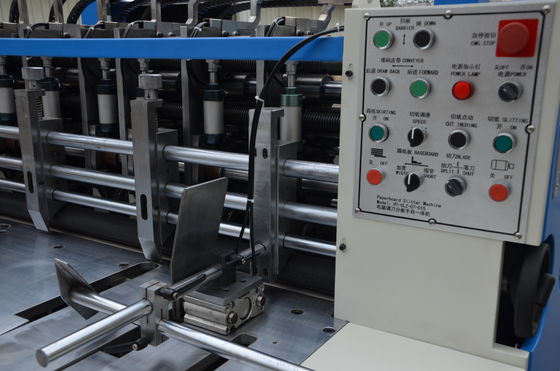

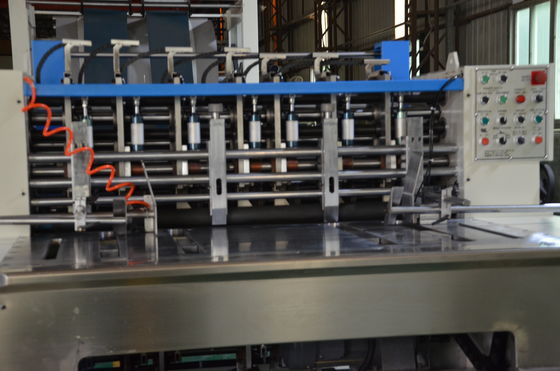

Machine is equipped with 7 couples (14 pcs) of individual slitter knives. Each knife is controlled by individual servo system and will move precisely as per the parameters set in the touch screen. The knives will automatically cut the cardboard with nice effect.
Machine could take out the auto feeding system and use manual feeding mode for big size of cardboard. The auto feeding system is used for second slitter.
![]()
| Model | MF-FQ1350A |
| Cardboard Max Size | 1300 x 1250 mm |
| Cardboard Min Size | 120 x 150 mm |
| Cardboard Max Size (auto feeding) | 1250 x420 mm |
| Cardboard Min Size (auto feeding) | 250x 150 mm |
| Cutting Thickness | 1 - 4 mm |
| Speed | 63 m/min |
| Automatic feeding Speed | 30 - 150 sheets/min |
| Cutting Knife | 7 Couples |
| Motor Power | 2.2 kw |
| Machine Dimensions(L×W×H) | 1810 x 2130 x 1600 mm |
| Machine Weight | 2650 kg |
