| Place of Origin: | China |
| Brand Name: | MAUFUNG |
| Certification: | CE |
| Model Number: | MF-FAC390 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden package for exports |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
| Max Speed: | 450 PCS/hour | Max Size: | 390*297mm |
|---|---|---|---|
| Min Size: | 100*100mm | Voltage: | 380/220V,3PH |
| Block Thickness: | 4-60mm | Highlights: | Fast Speed, Easy Adjusting |
| Usuage: | Hard Cover Book, Notebook, Photo Book Making Machine | Application: | Printing Press, Publisher, Notebook Manufacturer |
| Highlight: | lay flat photo book machine,auto photo album pressing machine,hard cover book forming machine |
||

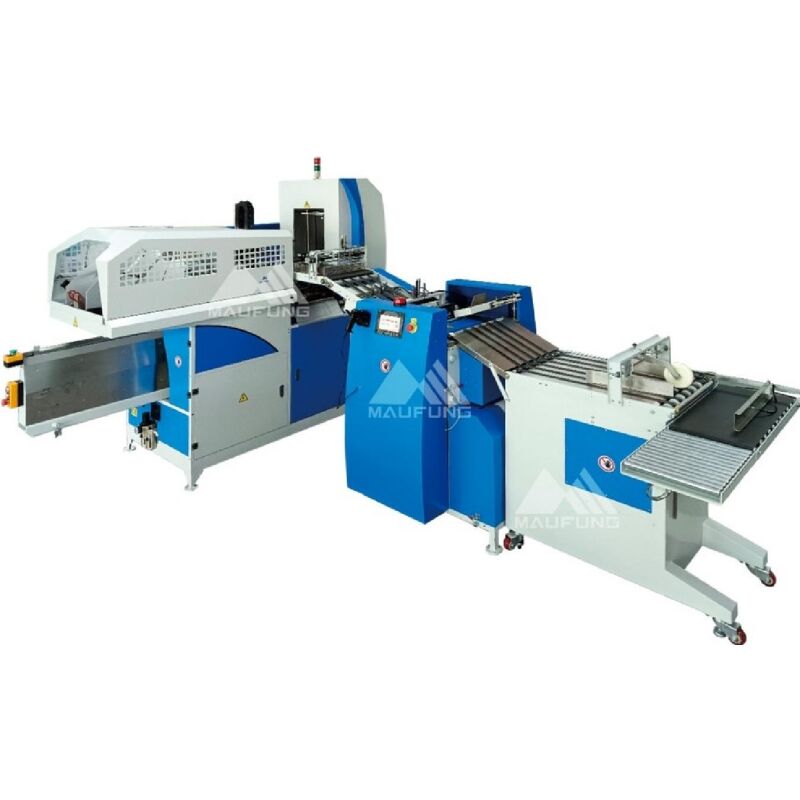

This automatic casing in and forming pressing machine is widely used for notebooks, photo books, and other hard cover books. It is an excellent choice for print finishing processes. The system features PLC controls with touch screen operation, requiring minimal operating technique. The machine automatically pushes cases, combines cases with blocks, performs nipping and joint forming, and stacks finished books.
| Parameter | Specification |
|---|---|
| Model | MF-FAC390 |
| Power Supply | 380V, 50HZ |
| Mainframe Power | 7.2kw |
| Block Thickness | 4-60mm |
| Block Size (Max) | 380×270mm |
| Block Size (Min) | 100×100mm |
| Max On-line Speed | 450 pcs/hour |
| Dimension (L×W×H) | 3890×2650×2000mm |
| Weight | 1500KG |
