| Place of Origin: | China |
| Brand Name: | MAUFUNG |
| Certification: | CE |
| Model Number: | MF-FQ1350A |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD/EUR/CNY |
| Packaging Details: | Wooden package for exports |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
| Model: | MF-FQ1350A | Cardboard Max Size: | 1300 X 1250 Mm |
|---|---|---|---|
| Cardboard Min Size: | 120 X 150 Mm | Cardboard Max Size (auto Feeding): | 1250 X420 Mm |
| Cardboard Min Size (auto Feeding): | 250x 150 Mm | Cutting Thickness: | 1 - 4 Mm |
| Speed: | 63 M/min | Automatic Feeding Speed: | 30 - 150 Sheets/min |
| Cutting Knife: | 7 Couples | Motor Power: | 2.2 Kw |
| Machine Dimensions(L×W×H): | 1810 X 2130 X 1600 Mm | Machine Weight: | 2650 Kg |
| Highlight: | 1-4mm cardboard slitter machine,intelligent paperboard cutting machine,hardcover book cardboard slitter |
||

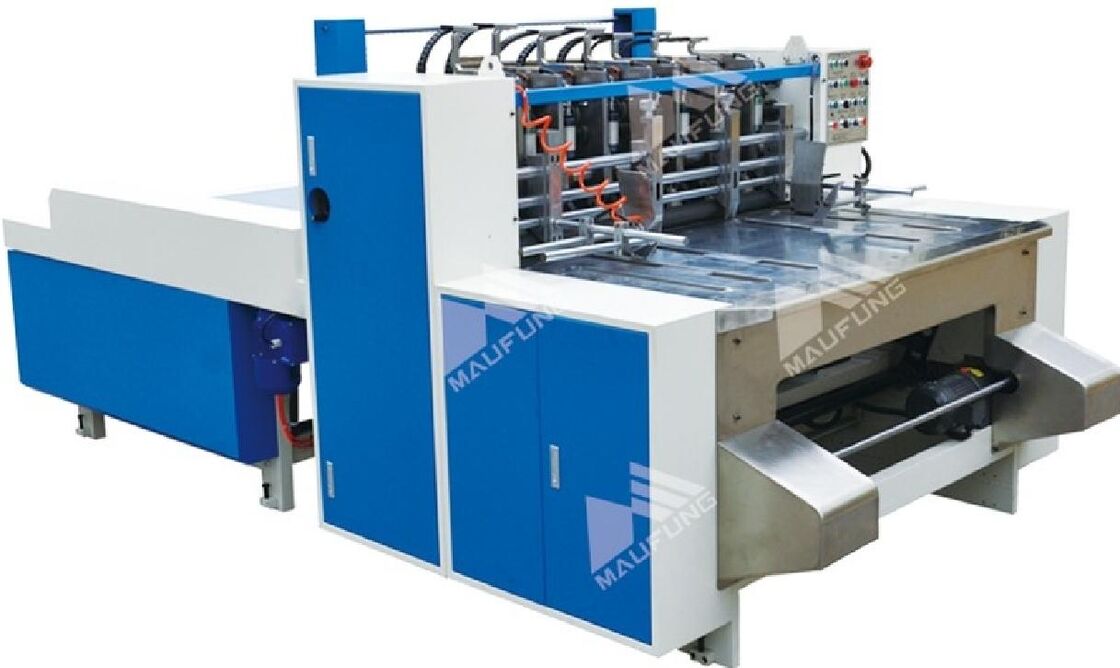

The Paperboard Slitter Machine is specially developed for cutting heavy book board and cardboard. It is an ideal equipment for case book covers, file boards, color cartons, and hard exercise books. This machine features reasonable structure, simple operation, smooth cutting edges, high accuracy, and high efficiency.
The machine is equipped with 7 couples (14 pieces) of individual slitter knives. Each knife is controlled by an individual servo system and moves precisely according to parameters set in the touch screen. The knives automatically cut cardboard with excellent results.
The machine can operate with the automatic feeding system removed, allowing manual feeding for larger cardboard sizes. The automatic feeding system is designed for secondary slitting operations.
| Model | MF-FQ1350A |
|---|---|
| Cardboard Max Size | 1300 x 1250 mm |
| Cardboard Min Size | 120 x 150 mm |
| Cardboard Max Size (auto feeding) | 1250 x 420 mm |
| Cardboard Min Size (auto feeding) | 250 x 150 mm |
| Cutting Thickness | 1 - 4 mm |
| Speed | 63 m/min |
| Automatic Feeding Speed | 30 - 150 sheets/min |
| Cutting Knife | 7 Couples |
| Motor Power | 2.2 kw |
| Machine Dimensions (L×W×H) | 1810 x 2130 x 1600 mm |
| Machine Weight | 2650 kg |
Our company specializes in manufacturing printing and packaging equipment including:
As a developing manufacturing and marketing company, we operate under our independent well-known brand MAUFUNG. Our products are sold worldwide in over 100 countries including the United States, European countries, Netherlands, Australia, New Zealand, Southeast Asia, Russia, the Middle East, and Africa.
We employ numerous professional mechanical engineers dedicated to improving production techniques. While continuously upgrading product quality and after-sales service, we focus on self-development adhering to our core principles: "People-oriented Principle, Quality for Survival Strategy, Credibility for Development Strategy" and "Rooting in Quality, Developing via Brand" strategy.
We provide comprehensive after-sales service including installation, adjustment, and maintenance. Our first-class production equipment, technical expertise, quality standards, and service have earned the trust of numerous companies worldwide.
