Product Details:
|
| Usuage: | Chidren's Books, Board To Board Books, Kids Books, Babies Books | Speed: | 4200 Sheets/hour |
|---|---|---|---|
| Max Size: | 390*290/490*390mm | MIn Size: | 140*140/180*180mm |
| Voltage: | 380/220V,3PH | Binding: | Lay-flat Binding, Mounting |
| Highlights: | 180 Degree Opened | Warranty: | 1 Year |
| High Light: | Children Books Lay Flat Binder,390*290mm Board Book Machine,490*390mm Board Book Machine |
||

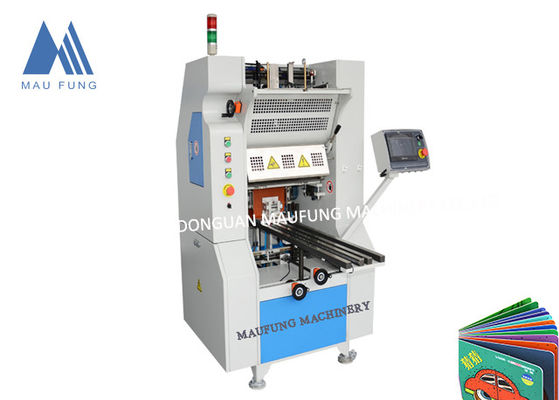

Children Board Book Binding Machine
Model MF-PF400, MF-PF500 Children Board Book Binding Machine is used for binding board to board books machine for children/kids/babies.
Working principle:
This machine makes the folded board papers combined with each other by white glue.
Signature auto feeding, auto gluing, auto pressing and trimming board papers from three sides function, intelligently separating book block.
Working process:
Set on the touch screen, the speed, the sheets per book, the book each run.
Put the board papers on the working table.
paper is feeded one by one down for gluing and the first layer of every book will not be gluing so that every book block is separated naturally.
All of the layers will be sent to the book collection station with the book spine downwards.
The signatures will be pressed tightly from three directions to make the spine flat.
Note:
For making the glued photo books more tightly and the binding function more perfectly, the users are suggested to press the finished book block over half an hour by Pressing Machine(MF-PM500).
| Model | MF-PF400 | MF-PF500 |
| Binding Size(Max) | W390*L290mm | W490*L390mm |
| Binding Size(Min) | W140*L140mm | W180*L180mm |
| Binding paper thickness | 175-450g | 175-500g |
| Max Binding Speed (Adjustable ) | 70cycles/Minute | 70cycles/minute |
| Type of Glue | Water-based White Glue | Water-based White Glue |
| Display | 7" Touch Screen | 7" Touch Screen |
| Signature Feeder | Automatic Paper Feeding | Automatic Paper Feeding |
| Power | 3 Phases / 220V/ 380V | 3 Phases / 220V/ 380V |
| Output Power | 2.5Kw | 2.5Kw |
| Dimensions (L*W*H) | 1200X950 X1725mm | 1200X1050X1925mm |
| Net Weight | 680kg | 880kg |
1. Auto Feeding: Apply good feeder delivery with double sheet in case of double sheet feeding.
2. Cam Struture: Use Cam system to deliver down the signature, stable and durable.
3. Gluing System: Adopt grid coating roller that can work on full area of board without slipping out of edge of the board.
4. Operation system: Use touch screen so as to make operation more convenient.
5. Multifunctional:
