Product Details:
|
| Model: | MF-SCM500 | Speed: | 100-150 Pcs/hour |
|---|---|---|---|
| Max Size: | 780*430mm | Min Size: | 140*140mm |
| Paper Thickness: | 80-200gsm | Cardboard Thickness: | 1-4mm |
| Warranty: | 1 Year | Voltage: | 380/220V,3PH |
| Usuage: | Hard Cover Book, Notebook, Calendar | Application: | Short Run Printing Press |
| High Light: | 80gsm Hardcover Book Binding Machine,140*140mm Hardcover Book Binding Machine,150pcs/h Case Binding Machine |
||

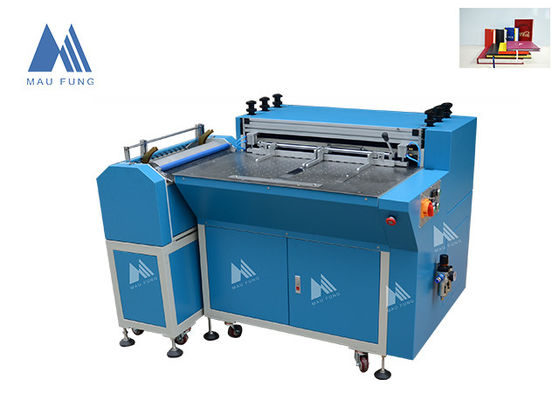

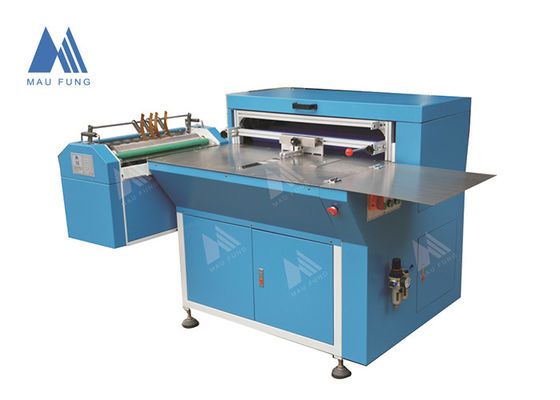

Manual Book Case Making Machine MF-SCM500
This Manual Book Case Maker MF-SCM500 is mainly applied in customized and individual photo books (photo album), folders, certificates, calendars, hardcover books. This process is finished easily at twice on both sides at the same time by one operator. It is the good partner of the digital post-press.
| Model | MF-SCM500 |
| Power Supply | 380V/220V, 50HZ |
| Mainframe Power | 5.2kw |
| Work Speed | 1-3PCS/minute |
| Paperboard Thickness | 1-4mm |
| Hard Case Spine Width(Min) | 8mm |
| Open Book Case Size(Max) | 780x430mm |
| Open Book Case Size(Min) | 140x140mm |
| Machine Dimensions(L×W×H) | 1780×1620×1000mm |
| Paper Thickness | 80-200g |
| Machine Weight | 500kg |
● Easy position equipment, put the cardboard manually
● Manual cardboard position
● Adopting PLC operating system
● Use hot glue
● Replace products; there is no need to change the cardboard size and the part of folding.
