| Place of Origin: | China |
| Brand Name: | MAUFUNG |
| Certification: | CE |
| Model Number: | MF-PCM380EV/560EV |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden package for exports |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
| Model: | MF-PCM380EV/560EV | Speed: | 600-900pcs/hour |
|---|---|---|---|
| Max Size: | 360*300mm/560*450mm | Block Thickness: | 4-60/80mm |
| Voltage: | 380/220V,3PH | Warranty: | 1 Year |
| Application: | Printing House, Book Publisher, Book Manufacturer | Usuage: | Forming And Pressing Machine For Hard Cover Book, Notebooks |
| Highlight: | 560*450mm Hardcover Book Binding Machine,80mm Hardcover Book Binding Machine,600pcs/h Book Cover Making Machine |
||

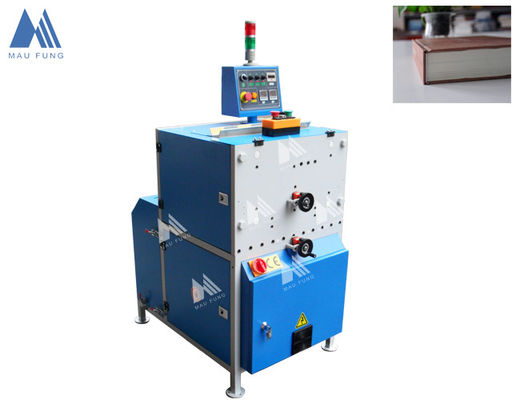

Hard Cover Book Joint Forming Machine MF-PCM380EV/560EVis developed for print finishing process of hard cover book, notebooks, photo books, and so on. It is usually used together with the Casing In Machine, and is the good solution for printing house, book publishers and notebook manufacturers.
| Model | MF-PCM380EV | MF-PCM560EV |
| Power Supply | 380V/220V, 50HZ | 380V/220V, 50HZ |
| Max Pressing Size | 360x300mm | 550x450mm |
| Max Pressure | 2T-5T | 2T-5T |
| Power | 2.5kw | 2.8kw |
| Dimensions (L×W×H) | 1300 x 730 x 1580mm | 1300 x 900 x 1850mm |
| Machine Weight | 490kg | 710kg |
