Product Details:
|
| Model: | MF-400A | Max Size: | 390*390mm |
|---|---|---|---|
| Function: | First Step- Bundling | MIn Size: | 70*70mm |
| Warranty: | 1 Year | Usuage: | Hot Foil Stamping Machine |
| Application: | Notebooks, Hard Cover Books, Diaries,etc | ||
| High Light: | 390*390mm paper bundling machine,1.5KW Hardcover Book Binding Machine,Book Bundling Casing in Machine |
||

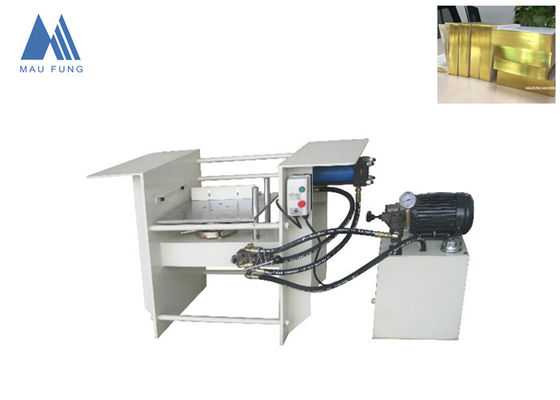

Book Edge Stamping Machine Book Bundling Machine MF-400A
Books Bundling Machine MF-400A is the matching equipment for the Hot Stamping Machine.The function is to press the books tightly with the book folders in order to grind and stamp the book edge. The machine uses the hydraulic system, has a big bundling thickness, large pressure, no misplacement. The clamp can be rotated 360 degrees after the book is fastened, and the operation is convenient.
| Model | MF-400A |
| Rated Voltage | 380V/220V, 50HZ |
| Rated Power | 1.5KW |
| Max Bundling Range | 390x390mm |
| Min Bundling Range | 70x70mm |
| Machine Dimensions(L×W×H) | 1500x600x820mm |
| Machine Weight | 480kg |
