Product Details:
|
| Model: | MF-400C | Stamping Size: | 390*390mm (max) |
|---|---|---|---|
| Function: | Hot Foil Stamping | Staming Size: | 70*70mm (min) |
| Warranty: | 1 Year | Usuage: | Hot Foil Embossing Machine |
| Application: | Notebooks, Hard Cover Books, Bibles,etc | After-sales Service Provided: | Online Support,Video Technical Support,Engineers Available To Service Machinery Overseas |
| High Light: | 2.2KW 380V gold stamping machine,39*39cm Gold Foil Embossing Machine,500KG Gold Foil Embossing Machine |
||

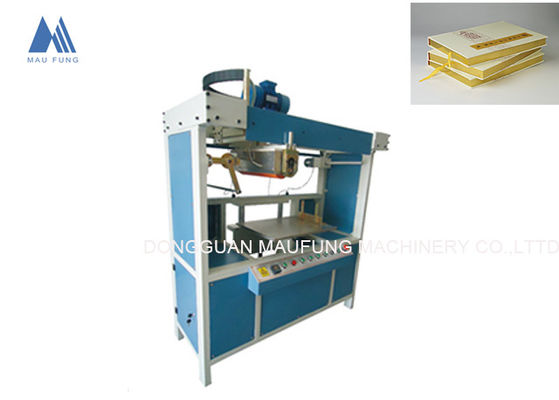

Notebook Edge Gold Stamping Machine , Book Binding Machine MF-400C
Hot stamping Machine MF-400C is applied to the book edge gold stamping, which is widely used for hard cover book, notebook, greeting cards, year books, bibles and other products. The machine use rolling stamping, which stamps the gold foil on the polished side of the book edge. It uses PLC program control system. It is right for both straight corner and round corner.
| Model | MF-400C |
| Voltage | 380V |
| Power | 2.2KW |
| Max Stamping Area | 390*390mm |
| Min Stamping Area | 70*70mm |
| Compressor Air source | 7-9KGF/CM |
| Machine Weight | 500KG |
| Machine Dimension(L*W*H) | 1450*800*1650mm |
