| Place of Origin: | China |
| Brand Name: | MAUFUNG |
| Certification: | CE |
| Model Number: | MF-HBM420 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden package for exports |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
| Model: | MF-HBM420 | Speed: | 700-1200 Pcs/hour |
|---|---|---|---|
| Max Size: | 350x420mm | Min Size: | 100*100mm |
| Thickness: | 10-60mm | Voltage: | 220V,1PH |
| Warranty: | 1 Year | Application: | Notebooks, Hard Cover Books, Diaries,etc |
| Highlight: | Book Head And Tail Banding Machine,Round Corner Hardcover Book Binding Machine,Square Corner Hardcover Book Binding Machine |
||

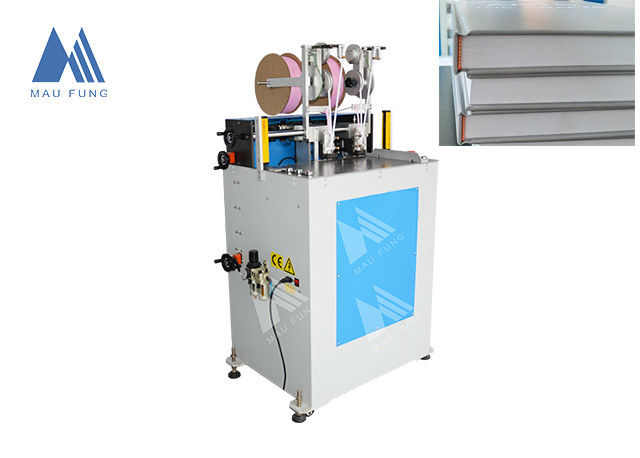

Maufung Head And Tail Banding Machine On Round And Square Corner Book Blocks MF-HBM420
Book Block Head Band Machine MF-HBM420 is an easy operation machine for sticking head and tail band on round and square book blocks. The head band is joined by the double adhesive tape before being pasted to the book spine. The machine does not need cleaning after production.
| Model | MF-HBM420 |
| Power Supply | 220V, 1 Phase, 50HZ |
| Mainframe Power | 1.5KW |
| Air Compressor | 6Bar |
| Machine Speed | 11-20 PCS/ Minute |
| Book Block Thickness | 10-60mm |
| Book Block Size(Max) | 350x420mm |
| Book Block Size(Min) | 100x100mm |
| Machine Dimensions(L×W×H) | 700×850×1550mm |
| Machine Weight | 120kg |
Contact Person: Marry Qu
Tel: 86-13763211611
Fax: 86-0769-21662570
