Product Details:
|
| Model: | MF-SKJ380AS | Binding Speed: | 600 - 1000 Pcs / Hour |
|---|---|---|---|
| Binding Size: | 90*60mm (min) | Voltage: | 380V,3PH,50HZ |
| Thickness: | 4-60mm | Condition: | New |
| Type: | Semi Auto | Application: | Publisher, Printing House, Bookbindery |
| Function: | Hard Cover Books, Notebooks, Diaries Binding | ||
| High Light: | A4 Diaries Casing In Machine,A5 Diaries Casing In Machine,Hardcover Notebook Binding Machine |
||

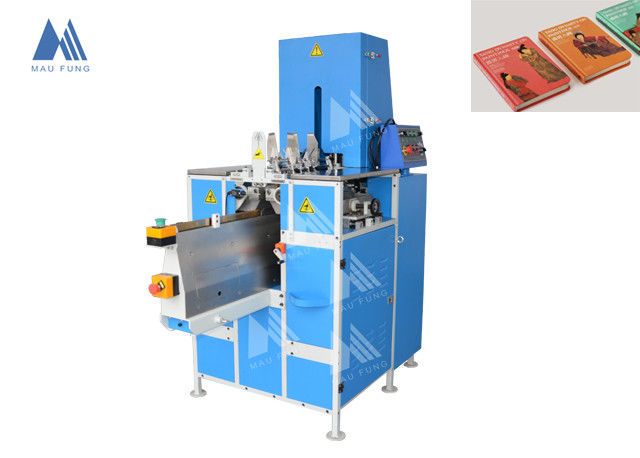

Maufung A4 A5 Diaries Casing In Machine For Hard Cover Books Notebooks MF-SKJ380AS
Casing-In Machine MF-SKJ380AS is used for inserting the block to book case. It is widely applied for various notebooks, diaries, Babis books, educational books, photo books, children books print finishing process,etc.
| Model | MF-SKJ380AS |
| Power Supply | 380V/220V, 50HZ |
| Mainframe power | 1.5kw |
| Work Speed | 0-17PCS/minute (Adjustable Speed) |
| The Book Block Thickness | 4-60mm |
| Hard Case Chipboard Size(Max) | 360x270mm |
| Hard Case Chipboard Size(Min) | 90x60mm |
| Machine Dimensions(L×W×H) | 1820×930×2100mm |
| Machine Weight | 540kg |
Speed Adjustable: Speed is adjusted as per the production demands.
The motor will stop running if not operating in 10 minutes for extanding the machine lifespan. When restarting work, just press the green start button. The Roller moving will not stop.
Adopt high quality spare parts such as the Mutsushibi, Omron.
Use Mechnical Princeple for Casing In in stead of pneumatic air principle to ensures a excellent Casing In effect.
Multifunctional: with soft cover mold for option, able to binding the soft cover books, and children board to boards which requires 1 cm not gluing.
