Product Details:
|
| Model: | MF-FAC390A | Max Speed: | 10 PCS/minute |
|---|---|---|---|
| Voltage: | 380/220V,3PH,50/60HZ | Block Thickness: | 4-60mm |
| Warranty: | 12 Months | Application: | Printing Shop, Publisher, Bookbindery |
| Usuage: | Hard Cover Book, Notebook, Photo Book, Bible | After-sales Service Provided: | Online Support,Video Technical Support,Engineers Available To Service Machinery Overseas |
| High Light: | 9KW Notebook Making Machine,380V Notebook Making Machine,Notebook Casing In Machine |
||

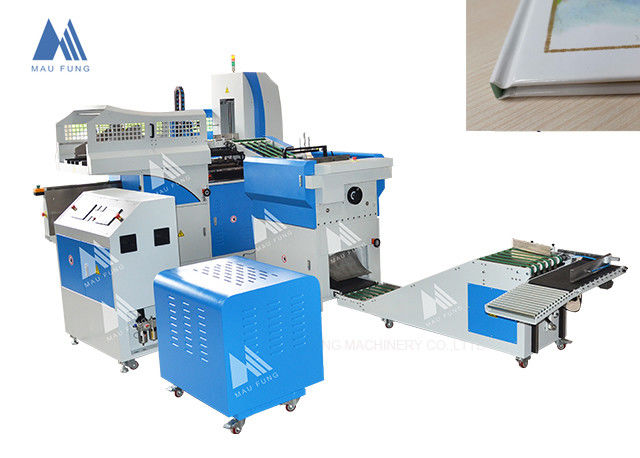

Automatic Notebook Making Machine Auto Casing In Machine For Diaries Making MF-FAC390A
Model MF-FAC390A is designed for book bindery, printing house and publisher, etc. It is used to insert the book block into hard case and then press and crease the book. It is widely used for making photo books, picture books, hard cover books and various notebooks.
| Model | MF-FAC390A |
| Power Supply | 380V, 50HZ |
| Mainframe Power | 9kw |
| Block Thickness | 4-60mm |
| Block Size (Max) | 390*297mm |
| Block Size (Min) | 100*100mm |
| On-line speed | 650pcs |
| Machine Dimensions(L×W×H) | 4950*2650* 2000mm |
| Machine Weight | 2000kg |
This model consist of 5 parts: Casing In Part, Pressing & Creasing Part, Delivery part, Control station, power station.
1. Casing In part:
2. Pressing & Creasing Part:
3. Delivery part:
