High Speed Automatic A4 Size Notebook End Paper Pasting And Tipping Machine MF-EIM450

I'm Online Chat Now

High Speed Automatic A4 Size Notebook End Paper Pasting And Tipping Machine MF-EIM450

High Speed Automatic A4 Size Notebook End Paper Pasting And Tipping Machine MF-EIM450
High Speed Automatic A4 Size Notebook End Paper Pasting And Tipping Machine MF-EIM450 High Speed Automatic A4 Size Notebook End Paper Pasting And Tipping Machine MF-EIM450

Large Image :  High Speed Automatic A4 Size Notebook End Paper Pasting And Tipping Machine MF-EIM450

Product Details:
Place of Origin: China
Brand Name: MAUFUNG
Certification: CE
Model Number: MF-EIM450
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Wooden package for exports
Delivery Time: 7-15 days
Payment Terms: T/T

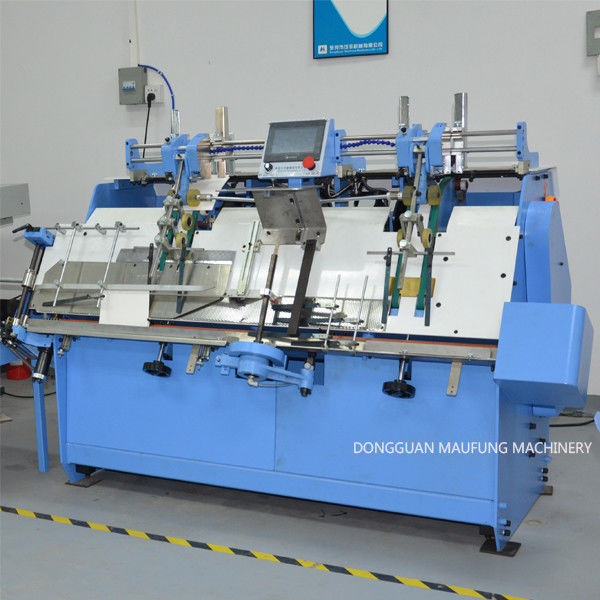

High Speed Automatic A4 Size Notebook End Paper Pasting And Tipping Machine MF-EIM450

Description
Model: MF-EIM450 Speed: 7000 Pcs/hour
Max Size: L450 X H320mm Min Size: L155 X H100mm
Warranty: 12 Months Type: New
Usuage: Notebook End Paper Pasting Machine Application: Notebooks, Hard Cover Books, Diaries, Year Books
Highlight:

Notebook End Paper Pasting Machine

,

High Speed End Paper Tipping Machine

,

380V End Paper Pasting Machine

High Speed Automatic A4 Size Notebook End Paper Pasting and Tipping Machine  MF-EIM450



Description:



MF-EIM450 is the ideal equipment for hard cover books, albums or notebooks, and is the a choice to improve the efficiency of the sewing.

It has two function: page insertiing, end papering.

  •  End Papering Function: It auto feeds down the signature or single paper and end paper, and auto put on glue, auto paste the end paper to signature.
  •  Page Inserting Function: Insert one signature to another signature. So that it will be more effcient to sew the thick block.
Parameters:



Model MF-EIM450
Maximum size

L450 X H320mm

Minimum size L155 X H100mm
Maximum speed 7000 Pcs/Hour
Max signature thickness 3mm
Single Sheet thickness 70-300g
Voltage 380V(Three-phase)
Power 4.5kw
Machine dimensions

2580X1780X1380mm

Machine weight 800KG



High Speed Automatic A4 Size Notebook End Paper Pasting And Tipping Machine MF-EIM450 0



FAQ:

1. What is machine warranty?

---- one year FREE warranty, whole life technique support.



2. Are you a manufacturer?

---- Yes, we are a manufacturer located in Dongguan City.



3. Is engineer installation service available?

--- Yes, we provide online technique support and also engineer installation service.



4. How about after-sales service process?

---- When your machine has problem, contact us and we will assist you immediately .



5. Does your machine have CE certificate?

---- Yes.



6. What is the production time after placing order?

---- Around 7-30 day



7. Does the packing strong?

---- Yes, of course! All of our export packing is with strong wooden case, all are confirm to export packing standard.



8. Do you inspect machines before delivery?

---- Yes, we will test machine by our QC department before delivery.
