| Place of Origin: | China |
| Brand Name: | MAUFUNG |
| Certification: | CE |
| Model Number: | MF-SKJ380AS |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD/CNY/EUR |
| Packaging Details: | Wooden package for exports |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Model: | MF-SKJ380AS | Binding Speed: | 600 - 1000 Pcs / Hour |
|---|---|---|---|
| Binding Size: | 90*60mm (min) | Voltage: | 380V,3PH,50HZ |
| Thickness: | 4-60mm | Condition: | New |
| Type: | Semi Auto | Application: | Publisher, Printing House, Bookbindery |
| Function: | Hard Cover Books, Notebooks, Diaries Binding | ||
| Highlight: | Diaries Semi Auto Casing In Machine,Hardcover Books Casing In Machine,A4 Notebooks Casing In Machine |
||

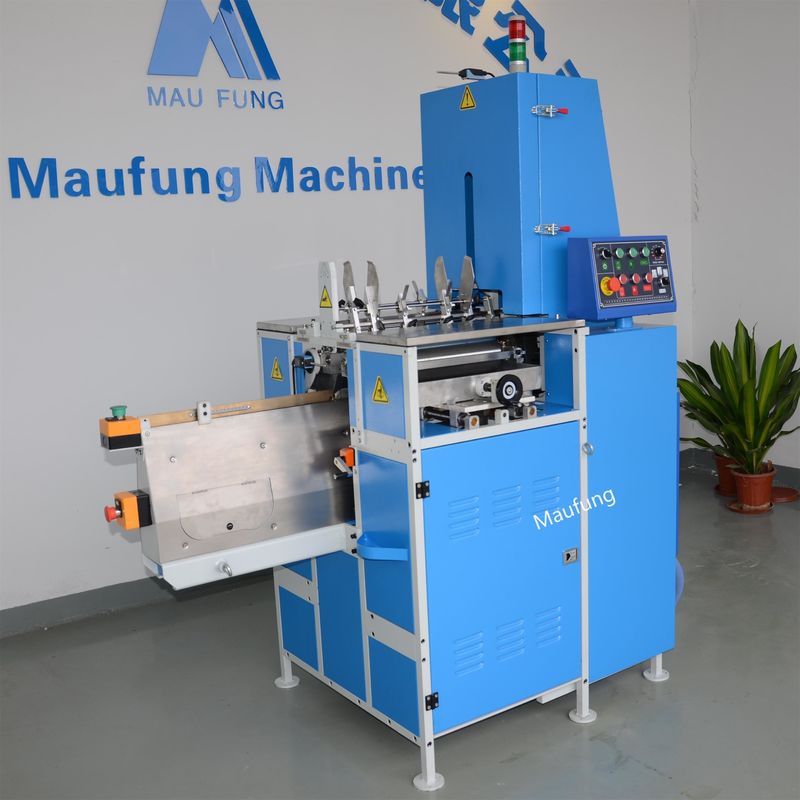

Casing-In Machine MF-SKJ380AS is used for inserting the block to book case. It is widely applied for various notebooks, diaries, Babis books, educational books, photo books, children books print finishing process,etc.
Brochure: CASING IN MACHINE.pdf
| Model | MF-SKJ380AS |
| Power Supply | 380V/220V, 50HZ |
| Mainframe power | 1.5kw |
| Work Speed | 0-17PCS/minute (Adjustable Speed) |
| The Book Block Thickness | 4-60mm |
| Hard Case Chipboard Size(Max) | 360x270mm |
| Hard Case Chipboard Size(Min) | 90x60mm |
| Machine Dimensions(L×W×H) | 1820×930×2100mm |
| Machine Weight | 540kg |
>Speed Adjustable: Speed is adjusted from 1-17 pcs per minute.
>The motor will stop running if not operating in 10 minutes for extanding the machine lifespan. When restarting work, just press the green start button. The Roller moving will not stop.
>Adopt high quality spare parts such as the Mutsushibi, Omron.
>Use Mechnical Princeple for Casing In in stead of pneumatic air principle to ensures an excellent Casing In effect.
>With Casing in mold for precise case positioning.
>With soft cover mold for option, able to binding the soft cover books, and children board to boards which requires 1 cm not gluing.
>With high quality gluing roll for even and thin glue onto the paper. There is no extra glue out of the paper.
>With CE certificate.
>We focus on the quality and technique of machine. We have patents for this machine.
>Easy in operation and adjusting with detailed installation video and manual.
>Techinician installation service is avaiable and we porvide on-line support.
>Machine is with one year free warranty and whole-life technical support.
Delivery: after the receipt of full payment.
Shipping method: Air transportation, sea transportation or train transportation
Packing: With strong wooden cases specially for exportation.
