Product Details:
|
| Model: | MF-SCM500A | Speed: | 180 Pcs/hour |
|---|---|---|---|
| Max Size: | 780*430mm | Voltage: | 380/220V,3PH |
| Min Size: | 140*140mm | Paper Thickness: | 80-200gsm |
| Warranty: | 1 Year | Application: | Short Run Printing Press |
| High Light: | 3ph Hardcover Case Making Machine,PLC Operating Hardcover Case Making Machine,PLC Operating Hard Cover Making Machine |
||

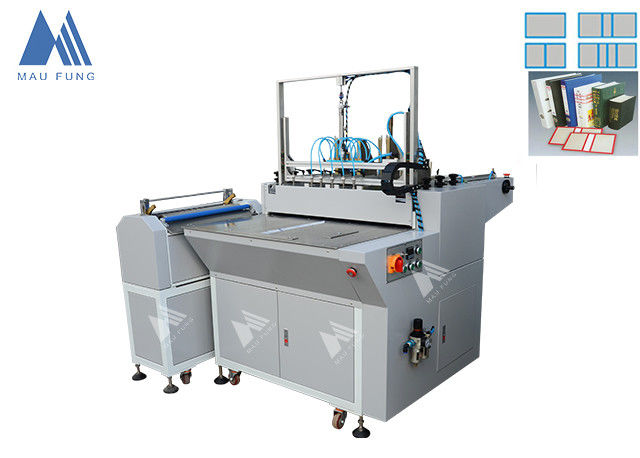

This Hard Cover Book Case Making Machine MF-SCM500A is mainly applied in covering and pressing various notebooks, photo books (photo album), folders, certificates, hardcover books. This process is finished easily at twice on both sides at the same time by one operator. It is the good partner of post-press, especially the digital post-press.
| Model | MF-SCM500A |
| Power Supply | 380V/220V, 50HZ |
| Mainframe Power | 5.2kw |
| Work Speed | 1-3PCS/minute |
| Paperboard Thickness | 1-4mm |
| Hard Case Spine Width(Min) | 8mm |
| Open Book Case Size(Max) | 780x430mm |
| Open Book Case Size(Min) | 140x140mm |
| Machine Dimensions(L×W×H) | 1780×1620×1400mm |
| Paper Thickness | 80-200g |
| Machine Weight | 500kg |
Note: Machine standard is for 1-4 pcs of cardboard, with 5 pcs of cardboard for option.
● Automatic paper feeding system;
● Pneumatic auto foot switch
● Adopting PLC operating system
● Use hot glue (animal glue / Jelly glue)
● Replace products, fast adjustment speed. The thickness of the cardboard could adjusted automatically
● Adjust the size by rotating the handle wheel
● Light Tube inside the working table makes the position more accurate.
Our company mainly produce Photo Book Lay Flat Machine, Book Block Head Band Machine, Semi Auto Case Maker, Hard Cover Book Case In Machine, Hard Cover Book Pressing & Creasing Machine, Book Block Rounding Machine, fully automatic punching machine, Auto Round Corner Cutting Machine, Automatic covering machine, automatic paper feeding and pasting machine, book Nipping machine, Elastic Band Inserting Machine, hydraulic impacting spine machine, etc. Regarding as a developing manufacturing and marketing company, we the professional equipment post-printing packaging company possess our independent well-known brands MAUFUNG. Products sell well not only in China and but also more than 100 countries in the world, such as the United States, the European countries, Netherlands, Australia, New Zealand, Southeast Asia, Russia, the Middle East and Africa,etc.
We have a large number of professional machinery technical engineers devoting in improving the machinery production technique. On constantly upgrading product quality and after-sales service, we also focus on self-developing adhering to “People-oriented Principle, Quality for Survival Strategy, Credibility for Development Strategy” and “Rooting in Quality, Developing via Brand” strategy. We offer thoughtful after-sale service including installation, adjustment and maintenance service for the machine. First-class production equipments, first-class technical force, first-class quality and first-class service make us win the trust from numerous companies at home and abroad.
■ We have professional sales people and technicians, who are serving you serve with their expertise and exquisite skills.
■ We have exported machines to more than 100 countries, and established well-developed service system and network.
■ All Machines enjoy one year free warranty.
■ Easy operation of machines and strict control in quality makes the after-sale very simple.
■ Professional and efficient maintenance service, and prompt & accurate feedback make sure that you will enjoy a high quality and consistent care from us.
