Diaries Notebooks Journals Cover Making Machine , Diaries Notebooks Binding Machine MF-SCM500A

Certification
China DONGGUAN MAUFUNG MACHINERY CO.,LTD certification
China DONGGUAN MAUFUNG MACHINERY CO.,LTD certification
I'm Online Chat Now

Diaries Notebooks Journals Cover Making Machine , Diaries Notebooks Binding Machine MF-SCM500A

Diaries Notebooks Journals Cover Making Machine , Diaries Notebooks Binding Machine MF-SCM500A
Diaries Notebooks Journals Cover Making Machine , Diaries Notebooks Binding Machine MF-SCM500A
Diaries Notebooks Journals Cover Making Machine , Diaries Notebooks Binding Machine MF-SCM500A Diaries Notebooks Journals Cover Making Machine , Diaries Notebooks Binding Machine MF-SCM500A

Large Image :  Diaries Notebooks Journals Cover Making Machine , Diaries Notebooks Binding Machine MF-SCM500A

Product Details:
Place of Origin: China
Brand Name: MAUFUNG
Certification: CE
Model Number: MF-SCM500A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD/EUR/CNY
Packaging Details: Wooden package for exports
Delivery Time: 7-15 days
Payment Terms: T/T
Supply Ability: 100 Sets/month

Diaries Notebooks Journals Cover Making Machine , Diaries Notebooks Binding Machine MF-SCM500A

Description
Model: MF-SCM500A Speed: 180 Pcs/hour
Max Size: 780*430mm Paper Thickness: 80-200gsm
Warranty: 1 Year Condition: New
Usuage: Hard Case For Notebook, Diaries, Certificates, Calendars After-sales Service Provided: Online Support,Video Technical Support,Engineers Available To Service Machinery Overseas
High Light:

5.2kw Notebook Cover Making Machine

,

5.2kw Notebook Binding Machine

,

Siemens PLC Control Notebook Binding Machine



Description:

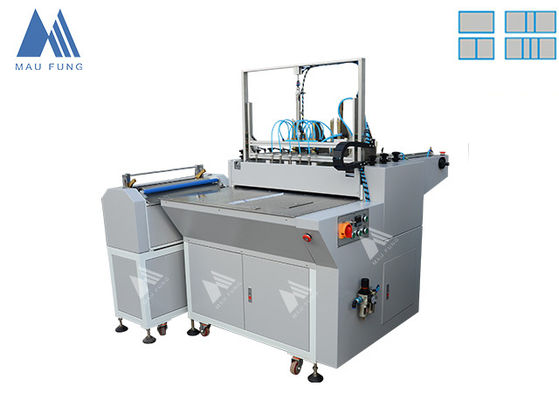

This Hard Cover Case Maker MF-SCM500A is mainly applied in covering and making the hard cover for various notebooks, photo books (photo album), folders, certificates, hardcover books. It is the good partner of post-press printing house, Digital Printing Press. This model consists of gluing part, cardboard pushing part, positioning table, edge folding part. Only one person is needed.



Diaries Notebooks Journals Cover Making Machine , Diaries Notebooks Binding Machine MF-SCM500A 0

Noted: Machine regular color is blue as above picture. Accept customized to grey color.



Parameters:



Model MF-SCM500A
Power Supply 380V/220V, 50HZ
Mainframe Power 5.2kw
Work Speed 1-3PCS/minute
Paperboard Thickness 1-4mm
Hard Case Spine Width(Min) 8mm
Open Book Case Size(Max) 780x430mm
Open Book Case Size(Min) 140x140mm
Machine Dimensions(L×W×H) 1780×1620×1400mm
Paper Thickness 80-200g
Machine Weight 550kg



Features:



Diaries Notebooks Journals Cover Making Machine , Diaries Notebooks Binding Machine MF-SCM500A 1

  • Board pushing: Auto pushing cardboard by pressing the foot switch.
  • Board sucking: Auto sucking with pneumatic air by pressing the foot switch
  • Gluing Unit:Support cold and hot glue. For a better effect, the hot melt glue is more recommended for cases making.
  • Operation table:equips with the light tube for paper positioning and the suction system to keep the paper on table.
  • The folding system consists of folding rakes, brushes and rollers which has applied the patents in year 2013. It is technical advanced and advoids the glue sticking problem.
  • Applying high quality International  brands, such as Siemems PLC, Siemems Frequency converter, Omron Relay.
About us:

Our company mainly produce Photo Book Lay Flat Machine, Book Block Head Band Machine, Semi Auto Case Maker, Hard Cover Book Case In Machine, Hard Cover Book Pressing & Creasing Machine, Book Block Rounding Machine, fully automatic punching machine, Auto Round Corner Cutting Machine, Automatic covering machine, automatic paper feeding and pasting machine, book Nipping machine, Elastic Band Inserting Machine, hydraulic impacting spine machine, etc. Regarding as a developing manufacturing and marketing company, we the professional equipment post-printing packaging company possess our independent well-known brands MAUFUNG. Products sell well not only in China and but also more than 100 countries in the world, such as the United States, the European countries, Netherlands, Australia, New Zealand, Southeast Asia, Russia, the Middle East and Africa,etc.



We have a large number of professional machinery technical engineers devoting in improving the machinery production technique. On constantly upgrading product quality and after-sales service, we also focus on self-developing adhering to “People-oriented Principle, Quality for Survival Strategy, Credibility for Development Strategy” and “Rooting in Quality, Developing via Brand” strategy. We offer thoughtful after-sale service including installation, adjustment and maintenance service for the machine. First-class production equipments, first-class technical force, first-class quality and first-class service make us win the trust from numerous companies at home and abroad.

Diaries Notebooks Journals Cover Making Machine , Diaries Notebooks Binding Machine MF-SCM500A 2



Certificate

Diaries Notebooks Journals Cover Making Machine , Diaries Notebooks Binding Machine MF-SCM500A 3

As a company who integrates developing,manufacturering and selling, we take quality and service as the core of our business.

  • Our machines has CE certificate;
  • We pay attention to the R& D technology and win many patents;
  • We gain the “High Tech Enterprise“ Certificate which is announced by our Guangdong Province government;
Professional before-sale and after-sale service



■ We have professional sales people and technicians, who are serving you serve with their expertise and exquisite skills.
■ We have exported machines to more than 100 countries, and established well-developed service system and network.

■ All Machines enjoy one year free warranty.

■ Easy operation of machines and strict control in quality makes the after-sale very simple.
■ Professional and efficient maintenance service, and prompt & accurate feedback make sure that you will enjoy a high quality and consistent care from us.
