Name: Semi-Automatic Book Block Head Band Machine 1.5KW 220V 11pcs/minute for Medium and Small Book Binding
Brand: DONGGUAN MAUFUNG MACHINERY CO.,LTD
Price: 11.00 USD
Availability: InStock

Home Products Notebook Binding Machine

Semi-Automatic Book Block Head Band Machine 1.5KW 220V 11pcs/minute for Medium and Small Book Binding

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	MAUFUNG

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$11,000-12,000

Contact Now

Detailed Product Description

Automatic Grade:	Semi-Automatic	Power:	1.5KW
Voltage:	220V	Speed:	11pcs/minute
Paper Thickness:	10-80mm	Machine Dimension:	W700L850H1550mm
Max Block Size:	350 X 420mm	Min Block Size:	100 X 100mm
Weight:	2700KG	Packing Size:	L1000W820H1740MM
Power Supply:	220V/1PH/50HZ	Mainframe Power:	1.5kw
Book Thickness:	10-80mm	Model No:	MF-HBM420
Gross Weight:	350KG
Highlight:	1.5KW Book Block Head Band Machine , 220V Notebook Binding Machine , 11pcs/minute Head Band Machine

Notebook Making Machine Book Edge Tail Band Machine Head Band Machine

Product Specifications

Model No	MF-HBM420
Power Supply	220V, 1Phase, 50HZ
Mainframe power	1.5kw
Work Speed	11PCS/minute
Book Block Thickness	10-80mm
Book Block Size (Max)	350x420mm
Book Block Size (Min)	100x100mm
Packing size (L×W×H)	L1000W820H1740MM
Machine Weight	2700KG(Net);350KG(Gross)

Product Overview

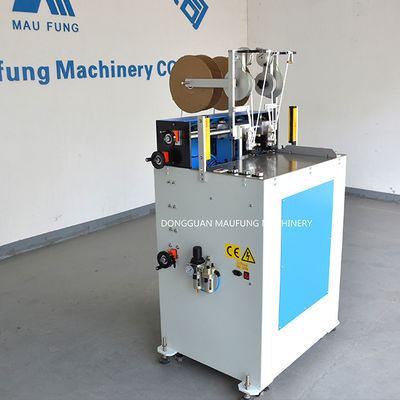

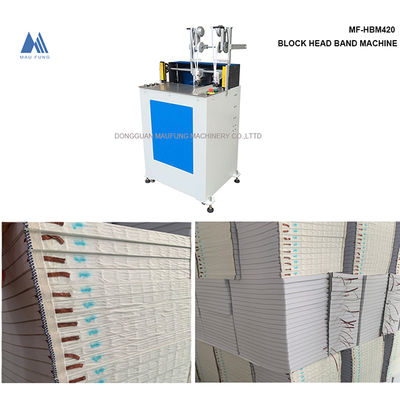

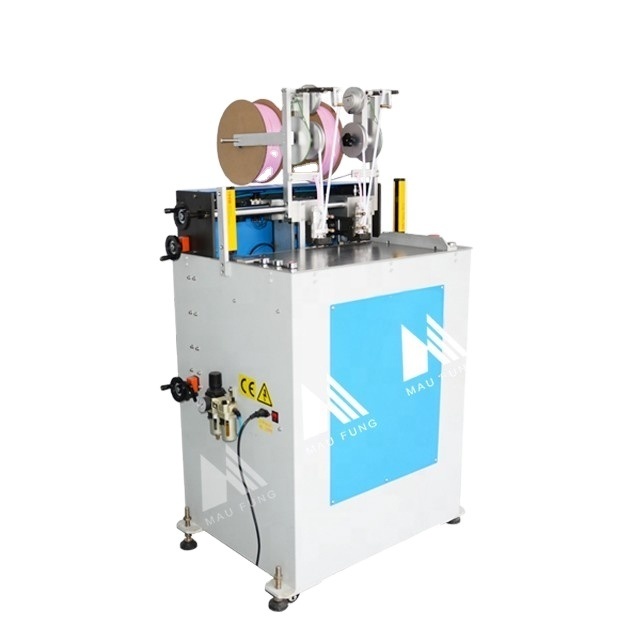

The Book Block Head Band Machine is a flexible and compact solution for applying head and tail bands to both round and square book blocks. Designed as the perfect solution for medium and small book binding companies, this machine joins the head band to the glue strip before application to the book spine. A significant advantage is that it requires no cleaning at the end of production.

Product Images

Certifications

Manufacturer Information

Dongguan Maufung Machinery Co., Ltd, located in Wanjiang district, Dongguan city, specializes in manufacturing case-maker hardcover, post-printing process, packaging, automatic gift box and pasting machines. Our product line includes Photo Book Lay Flat Machines, Book Block Head Band Machines, Semi Auto Case Makers, Hard Cover Book Case In Machines, and various other book binding and packaging equipment.

Our machines, sold under the MAUFUNG brand, are well-known in the Chinese domestic market and have been exported to over 100 countries including the United States, the Netherlands, Australia, and throughout Southeast Asia, Russia, the Middle East, and Africa.

We adhere to strict quality standards with our "People-oriented Principle, Quality for Survival Strategy, Credibility for Development Strategy" philosophy. Our comprehensive after-sales service includes installation, adjustment, and maintenance support. With first-class production equipment, technical expertise, product quality, and customer service, we have earned the trust of numerous companies worldwide.
