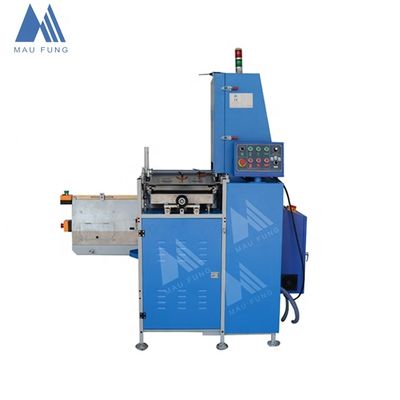

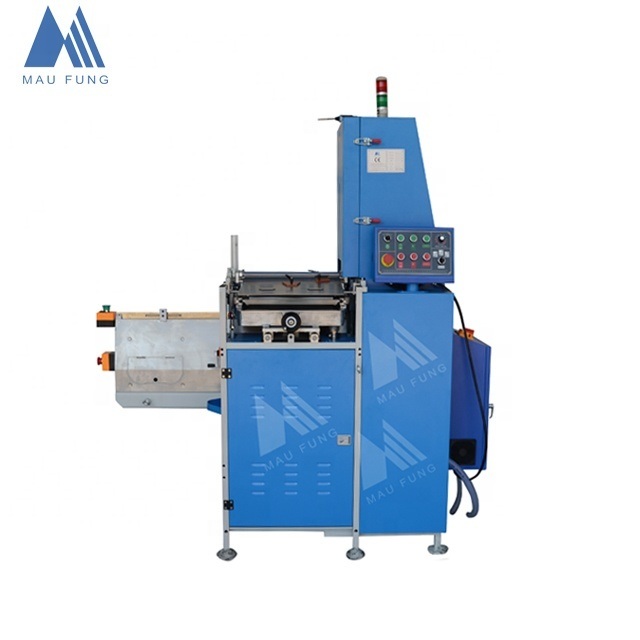

Semi-Automatic Notebook Binding Machine with 1.5kw Power 17 PCS/MIN Speed and 60mm Thickness for Soft Cover and Children Books

Semi-Automatic Notebook Binding Machine with 1.5kw Power 17 PCS/MIN Speed and 60mm Thickness for Soft Cover and Children Books

  • Semi-Automatic Notebook Binding Machine with 1.5kw Power 17 PCS/MIN Speed and 60mm Thickness for Soft Cover and Children Books
  • Semi-Automatic Notebook Binding Machine with 1.5kw Power 17 PCS/MIN Speed and 60mm Thickness for Soft Cover and Children Books
  • Semi-Automatic Notebook Binding Machine with 1.5kw Power 17 PCS/MIN Speed and 60mm Thickness for Soft Cover and Children Books
Semi-Automatic Notebook Binding Machine with 1.5kw Power 17 PCS/MIN Speed and 60mm Thickness for Soft Cover and Children Books
Product Details:
Place of Origin: Guangdong, China
Brand Name: Maufung
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $11,500-12,500
Contact Now
Detailed Product Description
Voltage: 380V Power: 1.5kw
Dimensions: 1820*930*2100mm Production Capacity: 17 PCS/MIN
Weight: 540 KG Model: SKJ380AS
Speed: 700-1000pcs/h Power Supply: 380V, 3PH
Thickness: 60mm Book Size: 360*270mm
Block Thickness: 4-60mm Max Size: 360x270mm
Min Size: 90x60mm Core Components: PLC, Gear, Motor
Work Speed: 0-17PCS/minute
Highlight:

semi-automatic notebook binding machine with 1.5kw power

,

notebook binding machine for soft cover books

,

children book binding machine 60mm thickness

Soft Cover Leather Notebook Casing Machine
Soft cover notebook making machine Notebook casing machine application
Designed for medium and small factories, this semi-automatic casing machine addresses the time-consuming nature of hardcover book production. It improves efficiency by eliminating unbalanced gluing issues and increasing gluing speed (both sides simultaneously). The machine features quick, precise alignment of hard cases with book blocks.

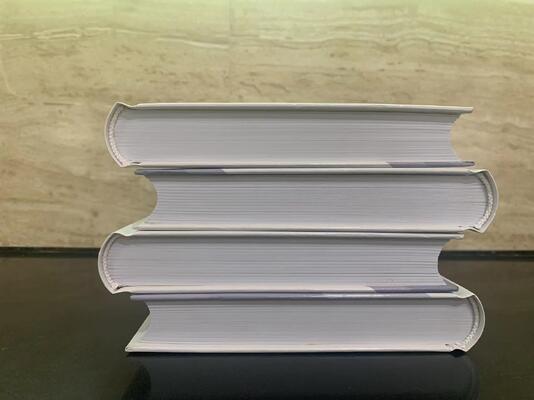

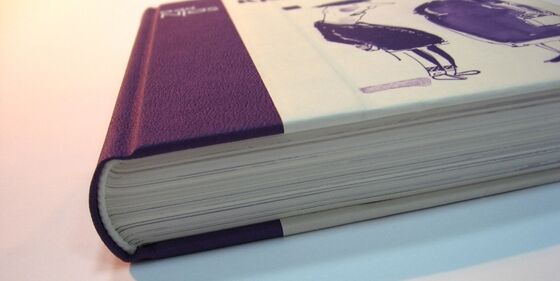

Ideal for soft cover notebooks and children's books production.
Notebook casing machine operation Machine close-up view Machine production process
Technical Specifications
Model No MF-SKJ380AS
Power Supply 380V/220V, 50HZ
Mainframe power 1.5kw
Work Speed 0-17PCS/minute (Adjustable Speed)
Block Thickness 4-60mm
Max Size 360x270mm
Min Size 90x60mm
Machine Dimensions(L×W×H) 1820×930×2100mm
Machine Weight 540kg
Key Features
  • Adjustable Speed: 0-1000 books/hour (17 books/minute)
  • Adjustable Pause Time: Customizable pause duration at highest point
  • Precision Alignment: Inch-in switch for precise machine debugging
  • Safety Feature: Automatic power off after 10 minutes of inactivity
  • Premium Components: High-quality variable-frequency drive
  • Easy Installation: Compatible with any three-phase electric phase sequence
Machine control panel
Related Products
MF-SCM500A Semi Auto Case Maker
MF-SCM500A
Semi Auto Case Maker
MF-PCM380EV Hard Cover Book Casing Machine
MF-PCM380EV
Hard Cover Book Casing Machine
MF-PF400 Photo Book Binder
MF-PF400
Photo Book Lay Flat Binder
Company Information
Company facility Company production area
We are a professional binding and packaging company integrating R&D, manufacturing and sales. Certified with CE and multiple patents, we are recognized as a National "High Tech Enterprise". Our philosophy is "People-oriented Principle, Quality for Survival Strategy, Credibility for Development Strategy".
Frequently Asked Questions
1. Is your company a factory or trading company?
Our company is a factory.
2. What about the samples?
You can visit our factory if you'd like.
3. How to install the machine?
After-sales Service Provided:
- Online support
- Free spare parts
- Field installation, commissioning and training
- Field maintenance and repair service
- Video technical support
4. What if the machine can't work?
We are available 24 hours online.
5. How long is the warranty period?
One year.
6. What are certificates of machine we have?
Our machines all have CE certificates and Certificates of origin.
