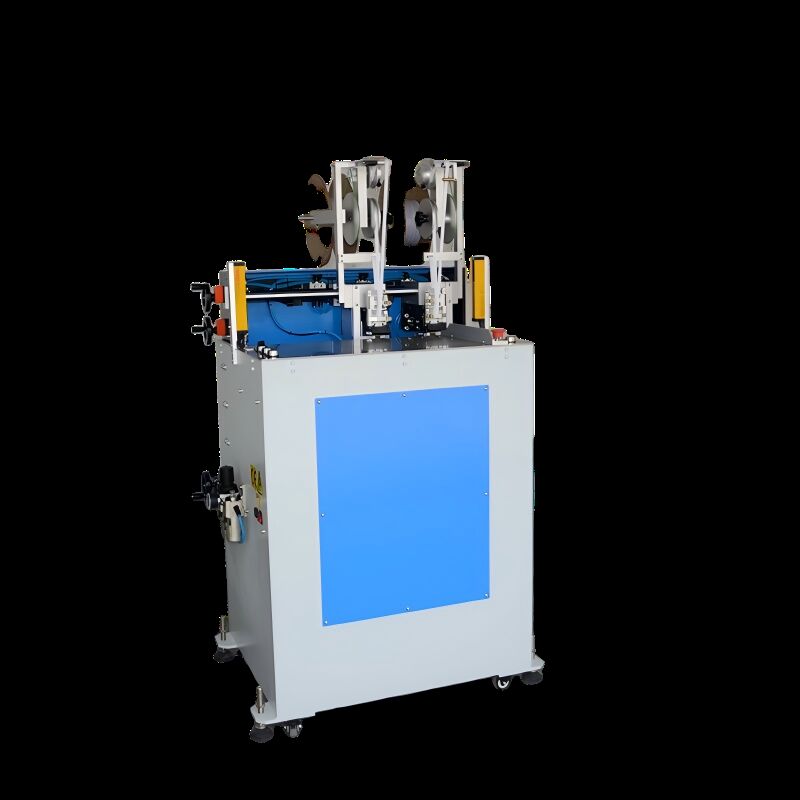

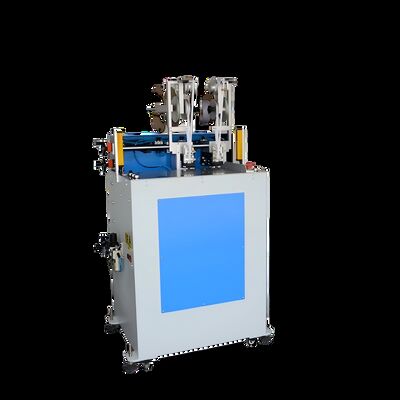

Semi-Automatic Book Block Head Band Machine 220V 1.5KW for Hard Cover Book Head Banding with 11pcs/minute Speed

Semi-Automatic Book Block Head Band Machine 220V 1.5KW for Hard Cover Book Head Banding with 11pcs/minute Speed

  • Semi-Automatic Book Block Head Band Machine 220V 1.5KW for Hard Cover Book Head Banding with 11pcs/minute Speed
Semi-Automatic Book Block Head Band Machine 220V 1.5KW for Hard Cover Book Head Banding with 11pcs/minute Speed
Product Details:
Place of Origin: Guangdong, China
Brand Name: MAUFUNG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $11,000-12,000
Contact Now
Detailed Product Description
Power: 1.5KW Voltage: 220V
Power Supply: 220V/1PH/50HZ Speed: 11pcs/minute
Paper Thickness: 10-80mm Max Block Size: 350 X 420mm
Min Block Size: 100 X 100mm Machine Dimension: W700L850H1550mm
Packing Dimension: L1000*W820*H1740MM Net Weight: 270KG
Gross Weight: 350KG Model No: MF-HBM420
Mainframe Power: 1.5kw Book Thickness: 10-80mm
Automatic Grade: Semi-Automatic
Highlight:

Semi-automatic book head band machine

,

220V hard cover book banding

,

11pcs/minute book binding machine

Semi-Automatic Book Block Head Band Machine 220V 1.5KW for Hard Cover Book Head Banding with 11pcs/minute Speed
Book Compact Head Tail Pasting Machine
Book Compact Head Tail Pasting Machine Book Block Head Band Endband Machine
Contact: Whats App/wechat: +86 13925857259 | Email: mf@mfjx.net
Product Specifications
Model No MF-HBM420
Power Supply 220V, 1Phase, 50HZ
Mainframe power 1.5kw
Work Speed 11PCS/minute
Book Block Thickness 10-80mm
Book Block Size (Max) 350x420mm
Book Block Size (Min) 100x100mm
Packing size (L×W×H) L1000*W820*H1740MM
Machine Weight 2700KG (Net); 350KG (Gross)
Product Overview
The Book Block Head Band Machine is a flexible and compact solution for applying head and tail bands to both round and square book blocks. Ideal for medium and small book binding operations, this machine attaches the head band to a glue strip before application to the book spine, eliminating the need for post-production cleaning.
Book Block Head Band Machine in operation
Head band cutting mechanism detail
Machine adhesive tape system
Key Features
  • Automatically cuts and delivers head bands
  • Uses double adhesive tape with automatic waste collection
  • Safety induction system stops operation when hands are detected
  • Hand wheel adjustment for book thickness, width, and head band height
Machine adjustment controls
Machine side view
Machine front view
Related Products
Semi-Automatic Case Maker
Semi-Automatic Case Maker
MF-SCM500A
Semi-Automatic Casing In Machine
Semi-Automatic Casing In Machine
MF-SKJ380AS
Book Joint Forming Machine
Book Joint Forming Machine
MF-PCM380EV/560EV
Certifications
Machine certifications
Company Profile
Dongguan Maufung Machinery facility
Dongguan Maufung Machinery Co., Ltd., located in Wanjiang district, Dongguan city, specializes in manufacturing case-making equipment for hardcover books, post-printing processes, packaging solutions, and automatic gift box machines.
Our product range includes Photo Book Lay Flat Machines, Book Block Head Band Machines, Semi-Auto Case Makers, and various book binding equipment. Our MAUFUNG brand is recognized domestically and exported to over 100 countries worldwide.
We adhere to strict quality standards and offer comprehensive after-sales services including installation, adjustment, and maintenance support.
Exhibition
Maufung Machinery exhibition display
