| Place of Origin: | China |
| Brand Name: | MAUFUNG |
| Certification: | CE |
| Model Number: | MF-DPBM500 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden package for exports |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
| Model: | MF-DPBM500 | Speed: | 800-2000 Pcs/hour |
|---|---|---|---|
| Highlights: | Auto Punching & Binding | Max Binding Size: | 510mm(binding)* 800mm |
| MIn Binding Size: | 100mm(binding)* 140mm | Voltage: | 380,3PH |
| Warranty: | 12 Months | Usuage: | Wire Notebooks, Calendar Making Machine |
| Highlight: | 2000pcs/H Punching Binding Machine,6mm Punching Binding Machine,510*800mm wire coil binding machine |
||

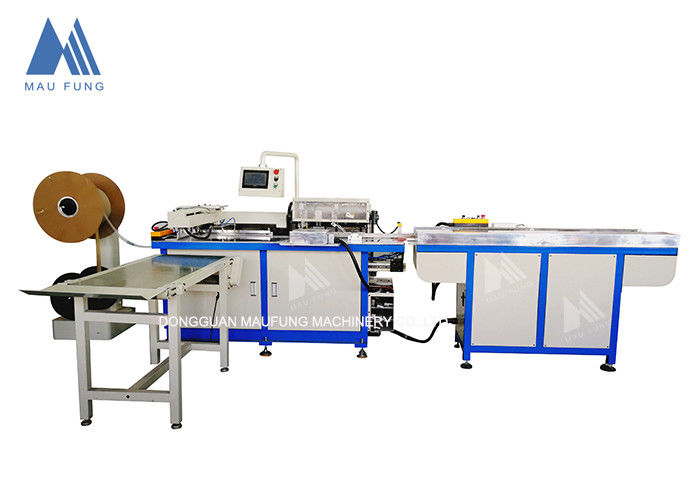

Notebook Double Wire Punching and Binding Machine MF-DPBM500
Model MF-DPB510 is an auto double wire bindng machine with punching function. It is a good choice for binding the desk calendar, Hanger Calender, wire notebook, drawing book etc. This model enhance the 80% efficiency compared with traditional binding and it could binding the procuts of which its the cover is bigger than the inner leaf.
| Model | MF-DPBM500 |
| Power Supply | 380V, 3PH, 50HZ/60HZ |
| Speed | 800-2000pcs/hour |
| Single Punching Thickness | 1-6mm |
| Max Punching thickness | 13mm (special products 16mm) |
| Max punching times per book | 5 times |
| Max size | 510mm(binding)* 800mm |
| Min size | 100mm(binding)* 140mm |
| Max Belt feeding size | 420*420mm |
| Wire diameter | 1/4”-5/8” (pitch: 2:1; 3:1) |
| Air compressor | 3KW |
| Weight | 2000KG |
| Machine Dimensions(L×W×H) | 4800*2600*1600mm |
1. The machine has the automatic layered book feeding, automatic layered punching, automatic cover sheet punching, automatic book hole alignment, automatic book binding, and automatic book collection function.
2. This model only needs 1-2 operators.
3. We Adopt high-quality punching molds, which can punch max 6mm; the mold applies auto oil refueling mechanism which has 10 times of longer lifespan than ordinary mold; one set of mold has two sizes in its double sides, which could be used as four new molds.
4. Quick in exchanging different sizes without moving the screws.
5. For the notebooks and calendar which cover is bigger than its leafs, machine will auto identify and separate them.
6. Equip with Auto hole alignment system.
7. Equip with auto fault advice function.
