Product Details:
|
| Model: | MF-SPB400 | Speed: | 800-1500 Pcs/hour |
|---|---|---|---|
| Highlights: | Forming & Punching & Binding | Max Binding Size: | 400(punch)*420mm |
| MIn Binding Size: | 100(punch)*140mm | Max Binding Thickness: | 13 Mm |
| Voltage: | 380,3PH | Warranty: | 12 Months |
| High Light: | 1500pcs/H Single Wire Binding Machine,1/4'' spiral notebook binding machine,13mm Single Wire Binding Machine |
||

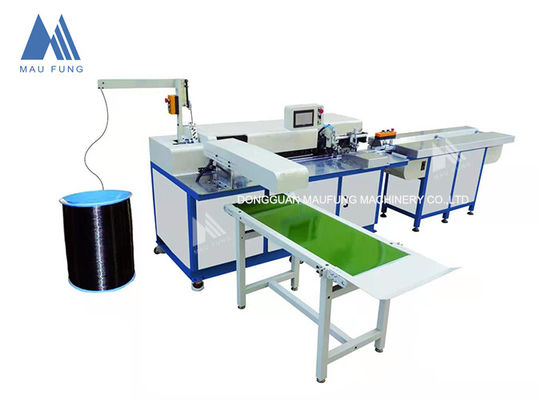

Auto notebook Single Wire Forming , Punching and Binding Machine MF-SPB400
MF-SPB400 is an Auto Single Spiral Binding Line with wire forming, punching and binding function. It greatly saves the labor cost. With Screen operation system, it is very convenient to handle the machine. Max binding thickness is up to 13mm.
| Model | MF-SPB400 |
| Power Supply | 380V, 3PH, 50HZ/60HZ |
| Speed | 800-1500pcs/hour |
| Single Punching Thickness | 1-6mm |
| Max Punching thickness | 13mm (special products 15mm) |
| Max punching times per book | 5 times |
| Max size | 400 (punch)*420 mm |
| Min size | 100(punch)*140 mm |
| Max Belt feeding size | 420*420mm |
| Wire diameter | 1/4”-5/8” (pitch: 4:1, 3:1, 6mm, 8mm) |
| Air compressor | 3KW |
| Weight | 1200KG |
| Machine Dimensions(L×W×H) | 4000*2500*1600 mm |
* Automatic forming the wire, punching,automatic binding ,automatic forming the single spiral.
* only 1-2 people to operate: one people feed the book, one people pack the finish book.
* High quality of punching mould , it can punch at most 6 mm, one mould has two sides of hole.
* It just need 5 minutes to change the punching mould, 10-20 minutes to change the forming mould.
* The machine positions the hole automatically.
