| Place of Origin: | China |
| Brand Name: | MAUFUNG |
| Certification: | CE |
| Model Number: | MF-1200A |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden package for exports |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
| Model: | MF-1200A | Cardboard Width: | 100-950mm |
|---|---|---|---|
| Cardboard Length: | 100-950mm | Notch Numbers: | 8 Slots |
| Voltage: | 380V,3PH | Warranty: | 12 Month |
| Key Words: | Cardboard Grooving Machine | ||
| Highlight: | cardboard grooving machine for box making,8 slots cardboard grooving machine,950mm cardboard grooving machine |
||

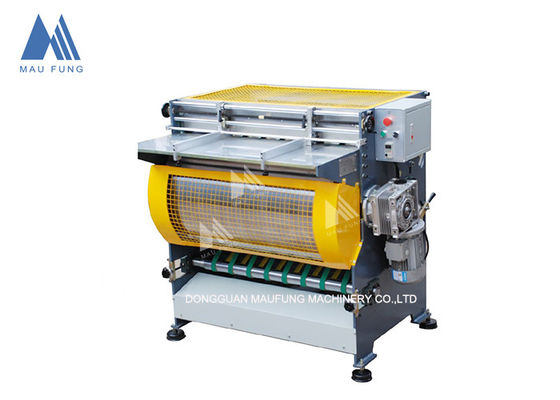

Rigid Box Semi Auto Grooving Machine , Rigid Box Making Machine MF-1200A
This machine is suitable for sloting a variety of specifications for gift box, moon cake box, mobile phone box, book type box and other boxes.This machine makes the paperboard to move at orc rotation. The blades combination could adjust the grooving degree and then increase the grooving speed and quality. Because the angle of blades combination could be polished easily and it could be used again and again, the service life will be longer. This machine apply for double row of blades. You could adjust the distance of blades horizontally and adjust the grooving degree. The grooving is finished without deckle edge and dirt.
| Model | MF-1200A |
| Greyboard Width | 100-950mm |
| Greyboard Length | 100-950mm |
| Notch Distance | 0-900mm |
| Greyboard Thickness | 300gsm-4mm |
| Notch Angle | 80-140° |
| Number of Notch | 8 Solts |
| Power | 1.5KW |
| Voltage | 380V |
| Speed | 10-35m/Min |
| Net Weight | 900Kg |
| Machine Dimension | 1500*1150*1350mm |
