Product Details:
|
| Model: | MF-SCM500A2 | Binding Speed: | 360 Pcs/hour |
|---|---|---|---|
| Binding Size: | 780*430mm (max) | Voltage: | 380,3PH |
| Warranty: | 12 Months Since Installation | Usuage: | Case For Rigid Box |
| Application: | Small Or Medium Printing House | Type: | Hard Case Binding Machine |
| Product Name: | Cardboard Box Cases Making Machine | ||
| High Light: | 780*430mm Case Maker Machine,5.2kw Case Maker Machine,360pcs/h cardboard box making machine |
||

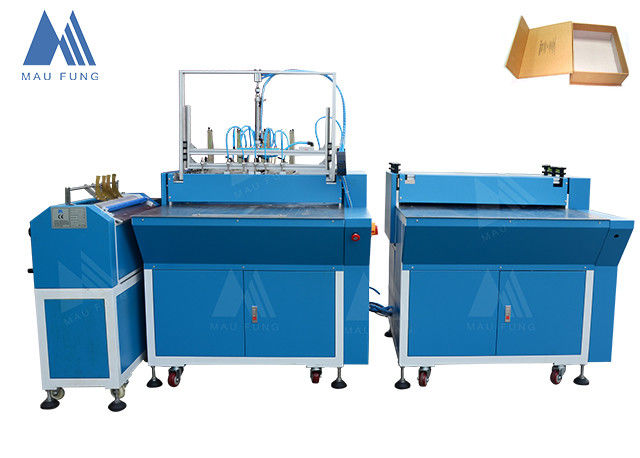

Two Stations Case Maker Machine for rigid Box Making , Cardboard Box Making Machine MF-SCM500A2
Two Stations Case Making Machine MF-SCM500A2 is applied in covering the box cover. It is of faster speed with two working stations, one for positioning the cardboard, one for folding the edges of the hard cover. It is right for 1-4 pcs of products, with 5 pcs for optional.
| Model | MF-SCM500A2 |
| Power Supply | 380V/220V, 50HZ/60HZ |
| Mainframe Power | 5.2kw |
| Binding Speed | 360 PCS/hour |
| Paperboard Thickness | 1-4mm |
| Hard Case Spine Width(Min) | 9mm |
| Open Book Case Size(Max) | 780x430mm |
| Open Book Case Size(Min) | 140x140mm |
| Machine Dimensions(L×W×H) | 2550×1680×1400mm |
| Paper Thickness | 80-200g |
| Machine Weight | 700kg |
