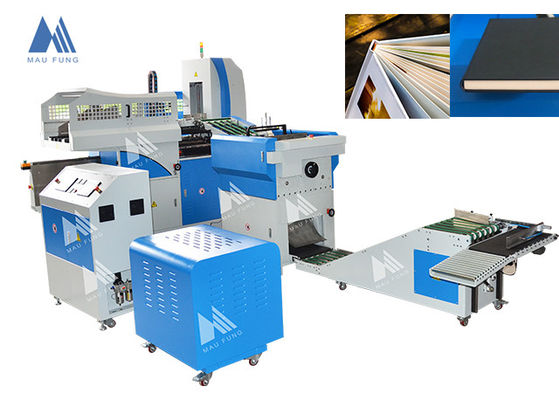

Name: Automatic Notebook Casing In Machine Hydraulic Nipping Machine MF-FAC390A
Brand: DONGGUAN MAUFUNG MACHINERY CO.,LTD
SKU: MF-FAC390A
Availability: InStock

Home Products Lay Flat Binding Machine

Automatic Notebook Casing In Machine Hydraulic Nipping Machine MF-FAC390A

Product Details:

Place of Origin:	China
Brand Name:	MAUFUNG
Certification:	CE
Model Number:	MF-FAC390A

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Wooden package for exports
Delivery Time:	7-15 days
Payment Terms:	T/T

Contact Now

Detailed Product Description

Model:	MF-FAC390A	Max Speed:	650 PCS/hour
Binding Size:	9060mm- 380270mm	Voltage:	380/220V,3PH,50/60HZ
Block Thickness:	4-60mm	Warranty:	12 Months
Highlights:	Auto Casing In, Auto Nipping,auto Stacking Books	Application:	Printing House, Publisher, Bookbindery
Usuage:	Hard Cover Book, Notebook, Photo Book Making Machine
Highlight:	650PCS/H Casing In Machine , 9kw Hydraulic Nipping Machine , 90*60mm Hydraulic Nipping Machine

Automatic Casing In and Hydraulic Nipping Machine for hard cover photo books binding MF-FAC390A

Description:

Model MF-FAC390A Auto Casing In and Hydraulic Nipping machine is based on model MF-FAC390. For increasing the speed, we update the pressing and creasing unit. MF-FAC390A has two stations of joint forming unit. Its speed is up to 650 pcs per hour. It is widely used for photo books, picture books, hard cover books, notebooks, and also for those notebooks which do not have the hard back.

Parameters:

Model	MF-FAC390A
Power Supply	380V, 50HZ
Mainframe Power	9kw
The Book Block Thickness	4-60mm
Hard Case Chipboard Size (Max)	380*270mm
Hard Case Chipboard Size (Min)	100*100mm
On-line speed	600pcs
Machine Dimensions(L×W×H)	49502650 2000mm
Machine Weight	2000kg

Features:

It adopts feeder for auto cases delivery with book back creasing function;
Automatically put on glue. For enhancing the adhension of the cases and block, we develop the double gluing function.
Automatically cases in block with alignment and pressing device to ensure a precise casing in effect;
Automatically presses and creases the book;
Automatically delivers the finished products.
Automatically counts the products.
Use PLC controlling systems;
Use hydraulic power for joint forming.
With touch screen operating system.
