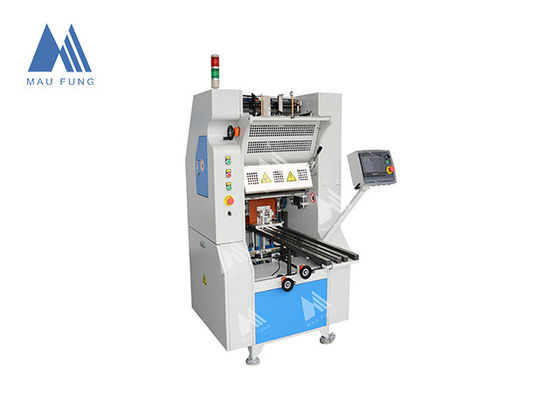

Name: Photo Album Lay Flat Binding Machine For 490*390mmLarge Size Photo Book MF-PF500
Brand: DONGGUAN MAUFUNG MACHINERY CO.,LTD
SKU: MF-PF500
Availability: InStock

Home Products Lay Flat Binding Machine

Photo Album Lay Flat Binding Machine For 490*390mmLarge Size Photo Book MF-PF500

Product Details:

Place of Origin:	China
Brand Name:	MAUFUNG
Certification:	CE
Model Number:	MF-PF500

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Wooden package for exports
Delivery Time:	7-15 days
Payment Terms:	T/T

Contact Now

Detailed Product Description

Model:	MF-PF500	Speed:	70 PCS/min
Binding Size:	490*390mm (max)	Binding:	Lay-flat Binding
Usuage:	Wedding Albums, Memory Book	Highlights:	Completely Opened, Lay Flat Gluing
Application:	Photo Shop, Printing Shop	Voltage:	380/220V,3PH
Highlight:	Lay Flat Binding Machine , Photo albums making machine , Children book gluing machine

Description:

Application: This machine is used for the lay flat binding of large format photo books, picture album, children board books, cookbooks, stamp album and so on.

Working process:

Put the board papers on the working table.
Set the numbers of the papers per book, and the books quantity
Paper is sucked one by one down for gluing.
Paper will be flapping from three directions by the swing pressing board to ensure the spine is flat.
Get out the books when machines stop feed down the paper.

Note: For making the glued photo books more tightly, pls press the book block (MF-PM500).

Photo Album Lay Flat Binding Machine For 490*390mmLarge Size Photo Book MF-PF500 0

Parameters:

Model	MF-PF500
Binding Size(Max)	W490*L390mm
Binding Size(Min)	W180*L180mm
Binding paper thickness	175-500g
Max Binding Speed (Adjustable )	70cycles/minute
Type of Glue	Water-based White Glue
Display	7" Touch Screen
Signature Feeder	Automatic Paper Feeding
Power	3 Phases / 220V/ 380V
Output Power	2.5Kw
Dimensions (LWH)	1200X1050X1925mm
Net Weight	880kg

Features:

Photo Album Lay Flat Binding Machine For 490*390mmLarge Size Photo Book MF-PF500 1

Auto sucking down the folded sheet
Using water based glue with grid glue roller that can work on full area of board without slipping out of edge of the board.
Auto pumping the glue, no need to manually add the glue during production.
Adopting the cam structure, stable and long life-span.
Using the PLC controlling system and touch screen operating system.
Applying high quality components, such as Mitsubishi PLC, Omron Relay, Orion Air Pump.
