| Place of Origin: | China |
| Brand Name: | MAUFUNG |
| Certification: | CE |
| Model Number: | MF-CPM300 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD/CNY/EUR |
| Packaging Details: | Wooden package for exports |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Model: | MF-CPM300 | Punching Size: | 420*300mm (max) |
|---|---|---|---|
| Application: | Cardboard / Paper Punching | Punching Speed: | 7000 Times/hour |
| Voltage: | 380V, 3ph | Warranty: | 12 Month |
| Key Words: | Notebook Desk Calendar Punching Machine | Usuage: | Paper Perforating Machine |
| Highlight: | A4 Wire O Notebook Binding Machine,A4 Paper Perforating Machine,A4 Cardboard Punching Machine |
||

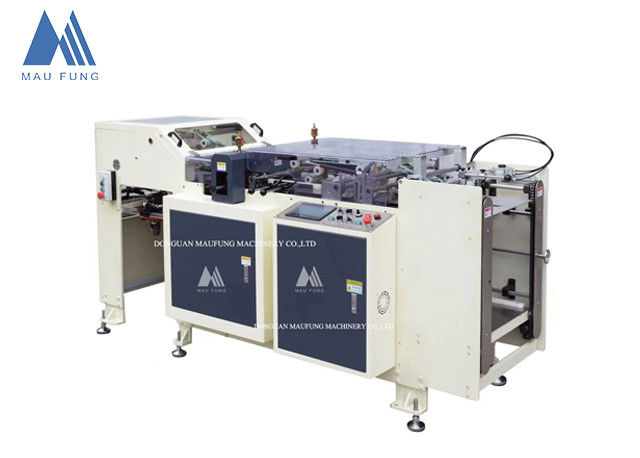

A4 Size Wire O Notebook Binding Machine Cardboard Punching Machine Paper Perforating Machine MF-CPM300
This model MF-CPM300 is applied for punching both thin paper and thick cardboard. The rear paper collecting wheel can be removed by the clutch, so the thick cardboard could fall to the delivery belt directly in cases of out of shape after reversing. This ensures thick cardboard in good shape without curve and also guarantees the punching effect.
Download the brochure: Punching Machine.pdf
| Model | MF-CPM300 |
| Power Supply | 380V/220V, 50HZ |
| Max Paper Size | 420*300mm |
| Min Paper Size | 140*60mm |
| Max Punching thickness | 0.5-4mm |
| Max Paper loading thickness | 500mm |
| Max working speed | 7200 times/hour |
| Air compressor | 4-6 bar |
| Power | 1.5 kw |
| Machine Dimensions(L×W×H) | 3100*2100*1400mm |
| Machine Weight | 1200KG |
