| Place of Origin: | China |
| Brand Name: | MAUFUNG |
| Certification: | CE |
| Model Number: | MF-SDM520 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD/CNY/EUR |
| Packaging Details: | Wooden package for exports |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Model NO: | MF-SDM520 | Speed: | 1500 Pcs/hour |
|---|---|---|---|
| Bind Width: | 507mm | Usuage: | Wire Notebooks, Calendar Making Machine |
| Voltage: | 380/220V,3PH | Materials: | Double Loop Metal Wire |
| Type: | Wire Binding Machine | Function: | Note Book,book Binding,binder Machine |
| Highlight: | A5 Twin Coil Book Binding Machine,1500pcs/h Coil Book Binding Machine,A5 Notebook Wire O Binding Machine |
||

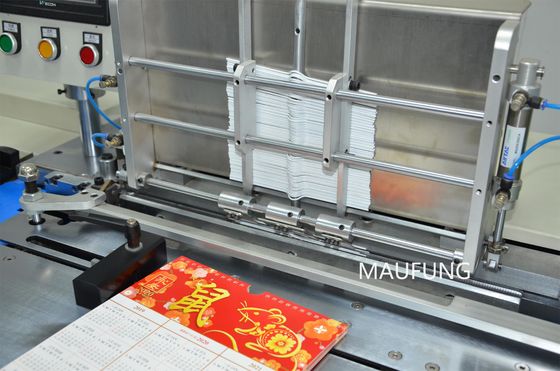

Model MF-SDM520 Double wire binding machine is used to bind the double twin wire notebooks and calendars. Machine auto delivers wire, auto cuts off wire and auto bind the wire to notebooks. It is very ideal machine for small or medium wire binding works.
1. The working speed is up to 25 books every minute.
2. With Touch Screen, easy to operate machines
2. The diameter of binding double wires can be up to 1/3〞and 5/8〞.
3. Electrical and pneumatic parts are imported from Germany.
| Model | MF-SDM520 |
| Power Supply | 380V/220V, 50HZ |
| Mainframe Power | 2KW |
| Binds sheet Width(max) | 507mm |
| Binds Double Coil Standard | P3:1 3/16″-9/16″ P2:1 5/8″-1″ |
| Work Speed | 25PCS/minute |
| Machine Dimensions(L×W×H) | 1030×770×1200mm |
| Worktable Dimension | 600mm×300mm |
| Air Pressure | 6-8pa |
| Machine Weight | 280kg |
Auto Feeding: Auto feeds double wire:
Support the hanger calendar production:
High quality mold:Auto cuts off the double wire
Delivery Belt: with delivery belt easy for finished product collection.
