| Place of Origin: | China |
| Brand Name: | MAUFUNG |
| Certification: | CE |
| Model Number: | MF-SDM360 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden package for exports |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
| Model: | MF-SDM360 | Speed: | 1000 Volume/hour |
|---|---|---|---|
| Highlights: | Without Mold | Bind Width: | 360mm |
| Voltage: | 380/220V,3PH | Warranty: | 1 Year |
| Materials: | Double Loop Metal Wire | Usuage: | Wire Notebooks, Calendar Making Machine |
| Highlight: | CE twin coil wire binding machine,360mm spiral book binder,25pcs per minute binding machine |
||

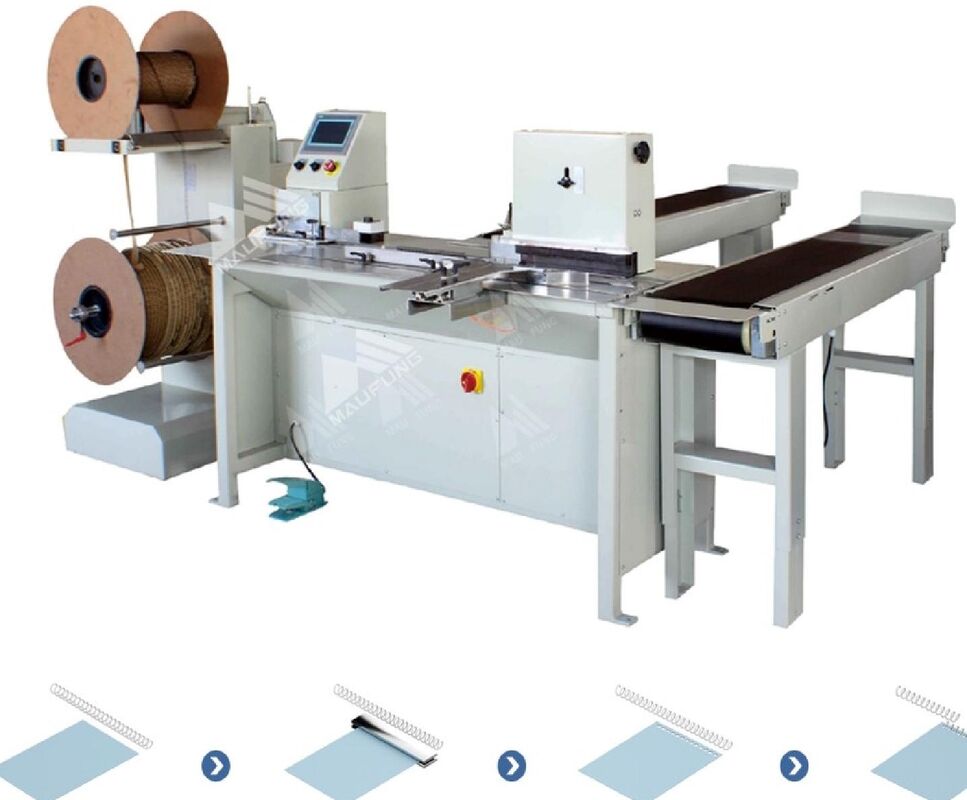

The Twin Coil Notebook Calendar Binding Machine MF-SDM360 is designed for binding double wire books, notebooks, wall calendars, and similar products. This versatile machine accommodates binding diameters from 1/4" to 1¼" without requiring mold changes.
Featuring an integrated automated system that handles spool unwinding, loop cutting, conveying, and closing operations, this machine significantly enhances production efficiency while reducing operational costs. The PLC-controlled system ensures easy operation and adjustment.
The adjustable closing press eliminates the need for tool changes across all diameter sizes, making this machine particularly suitable for binding notebooks where the cover dimensions exceed those of the inner sheets.
| Model | MF-SDM520 |
|---|---|
| Power Supply | 380V/220V, 50HZ |
| Mainframe Power | 2KW |
| Binds Sheet Width (max) | 507mm |
| Binds Double Coil Standard | P3:1 3/16″-9/16″ P2:1 5/8″-1″ |
| Work Speed | 25PCS/minute |
| Machine Dimensions (L×W×H) | 1030×770×1200mm |
| Worktable Dimension | 600mm×300mm |
| Air Pressure | 6-8pa |
| Machine Weight | 280kg |
