Name: Hanger Calendar 1500pcs/H Double Wire Binding Machine MF-SDM520
Brand: DONGGUAN MAUFUNG MACHINERY CO.,LTD
SKU: MF-SDM520
Availability: InStock

Home Products Wire Binding Machine

Hanger Calendar 1500pcs/H Double Wire Binding Machine MF-SDM520

Product Details:

Place of Origin:	China
Brand Name:	MAUFUNG
Certification:	CE
Model Number:	MF-SDM520

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	EUR/CNY/USD
Packaging Details:	Wooden package for exports
Delivery Time:	7-15 days
Payment Terms:	T/T
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Usuage:	Wire Notebooks, Calendar Making Machine	Speed:	1500 Pcs/hour
Highlights:	Hanger Calendar	Bind Width:	507mm
Voltage:	380/220V,3PH	Materials:	Double Loop Metal Wire
Highlight:	1500pcs/h double Wire Binding Machine , 507mm Double Wire Binding Machine , 2KW notebook spiral binding machine

Description:

Model MF-SDM520 Double wire binding machine is right for notebooks, calendars.

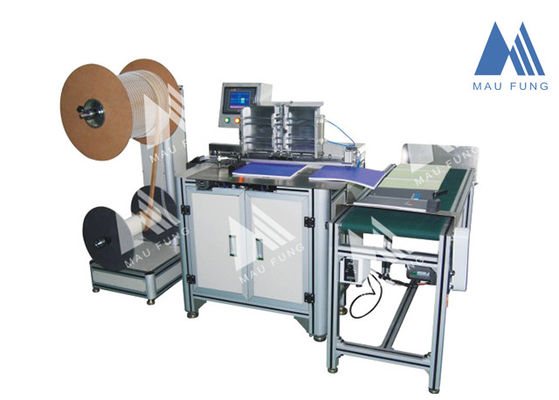

Hanger Calendar 1500pcs/H Double Wire Binding Machine MF-SDM520 0

Parameters:

Model	MF-SDM520
Power Supply	380V/220V, 50HZ
Mainframe Power	2KW
Binds sheet Width(max)	507mm
Binds Double Coil Standard	P3:1 3/16″-9/16″ P2:1 5/8″-1″
Work Speed	25PCS/minute
Machine Dimensions(L×W×H)	1030×770×1200mm
Worktable Dimension	600mm×300mm
Air Pressure	6-8pa
Machine Weight	280kg

Features:

1. The working speed can produce 25 books every minute. The touch type control can operate simple and have one part bookbinding, reaching to 5 at most

2. The diameter of binding double wires can be up to 1/3〞and 5/8〞.

3. Electrical and pneumatic parts are imported from Germany. Binding and pothook will be found in the attachment.

Hanger Calendar 1500pcs/H Double Wire Binding Machine MF-SDM520 1
