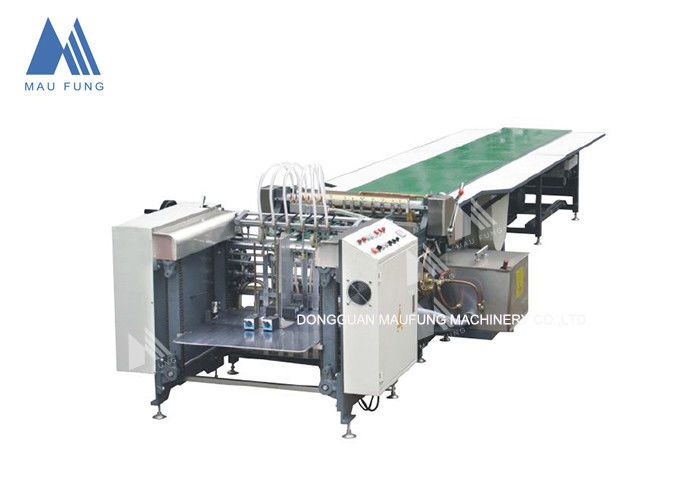

600mm width Auto Paper Feeding Rigid Box Paper Gluing Machine MF-SJ650A

Certification
China DONGGUAN MAUFUNG MACHINERY CO.,LTD certification
China DONGGUAN MAUFUNG MACHINERY CO.,LTD certification
I'm Online Chat Now

600mm width Auto Paper Feeding Rigid Box Paper Gluing Machine MF-SJ650A

600mm width Auto Paper Feeding Rigid Box Paper Gluing Machine MF-SJ650A
600mm width Auto Paper Feeding Rigid Box Paper Gluing Machine MF-SJ650A
600mm width Auto Paper Feeding Rigid Box Paper Gluing Machine MF-SJ650A 600mm width Auto Paper Feeding Rigid Box Paper Gluing Machine MF-SJ650A

Large Image :  600mm width Auto Paper Feeding Rigid Box Paper Gluing Machine MF-SJ650A

Product Details:
Place of Origin: China
Brand Name: MAUFUNG
Certification: CE
Model Number: MF-SJ650A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Wooden package for exports
Delivery Time: 7-15 days
Payment Terms: T/T

600mm width Auto Paper Feeding Rigid Box Paper Gluing Machine MF-SJ650A

Description
Model: MF-SJ650A Speed: 7-40 PCS/min
Hightlights: Auto Paper Feeding Paper Width: 80-600mm
Voltage: 380V,3PH Warranty: 12 Month
Use: Packaging, Gift Box , Shoe Box ,Candle Box,Jewelry Box Key Words: Box Paper Gluing Machine
High Light:

40pcs/min Paper Gluing Machine

,

600mm Rigid Paper Gluing Machine

,

800*840mm rigid box pasting machine



Rigid Box Paper Gluing Machine with auto paper feeding  MF-SJ650A



Description:

This model is used for rigid box paper gluing. It consists of three parts with auto paper feeding.



Paper Feeding Part:

Single sheet feeding with front edge, suck up the sheets with vacuum, then convey the front sheets. It is suitable for long sheet.

The paper pile is fixed by magnetic side stops, which are flexible and steady.

Sheets are conveyed smoothly by pressure system with a line.

Cementing Part:

Easily adjust the gluing rollers, apply an average coating the full surface of the sheet and prevent paper from wrinkling.

The circulating glue-system with heating and temperature controlling system ensures proper viscosity.

Conveying Part:

Induced draft system is equipped in the front of the conveyor, delivering paper stably forward.



Parameters:



Model MF-SJ650A
Voltage 380V/50HZ
Power 10.9KW
Speed 70-40 pcs/min
Paper width 80-600MM
Paper Length NO limited
Sheet Thickness 80-200g
Working Table Dimension 800*840mm
Convey Belt Length 5000mm
Machine Dimension 1800*1500*1000mm
Machine Weight 1200kg



Features:
  • Applied to File boxes, Portfolio, Clothing box ,Shoes box ,Gift boxes and hard book covers etc.
  • Various glue can be used for hot glue, bone glue ,aqueous glue, rice glue and latex.
  • Frequency control of motor speed, stainless steel. Do not be deformed. Automatic feeder and high accuracy.
  • The circulating glue-system with indirect heating and temperature controlling system ensures the back glue escaping from being stuck in low temperature environment.
  • The series of machine can be combined into various assembly lines according to the needs of the product.
