Product Details:
|
| Model: | MF-CPM300 | Punching Size: | 310*300mm (max) |
|---|---|---|---|
| Application: | Cardboard / Paper Punching | Punching Speed: | 7200 Times/hour |
| Voltage: | 380V, 3ph | Warranty: | 1 Year |
| Key Words: | Notebook Auto Punching Machine | Usuage: | Coil Notebooks, Desk Calendar Making Machine |
| High Light: | 1.5KW Calendar Spiral Binding Machine,310*300mm spiral hole punch machine,90*90mm Calendar Spiral Binding Machine |
||

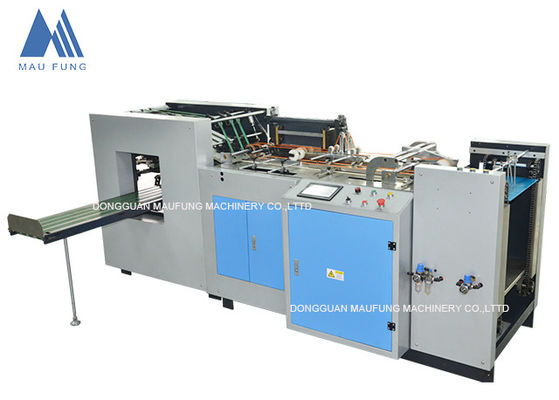

Fully Auto Calendar Punching Machine , Notebook Hard Cases cardboard Perforating Machine MF-CPM300
This model MF-CPM300 is applied for both thin paper and thick cardboard. It is used for punching the cover of notebook, calendar and PP board. To prevent the curve of thick cardboard, we employ the unique cardboard delivery system instead of turning over the cardboard. This ensures that cardboard is in good situation without curve and also also guarantee the punching effect.
Download the brochure:Punching Machine.pdf
| Model | MF-CPM300 |
| Power Supply | 380V/220V, 50HZ |
| Max Paper Size | 310*300mm |
| Min Paper Size | 90*90mm |
| Max Punching thickness | 2mm |
| Max Paper loading thickness | 500mm |
| Max working speed | 7200 times/hour |
| Air compressor | 4-6 bar |
| Power | 1.5 kw |
| Machine Dimensions(L×W×H) | 3100*2100*1400mm |
| Machine Weight | 1200KG |
