Product Details:
|
| Model: | MF-SJ850A | Speed: | 7-40 PCS/min |
|---|---|---|---|
| Hightlights: | Paper Feeding | Paper Width: | 80-800mm |
| Voltage: | 380V,3PH | Warranty: | 12 Month |
| Use: | Packaging Box, Gift Box , Shoes Box ,Candle Box, Sweet Box | Key Words: | Rigid Box Paper Gluing Machine |
| Highlight: | 40pcs/min Rigid Box pasting machine,800MM Paper Gluing Machine,10.9KW box pasting machine |
||

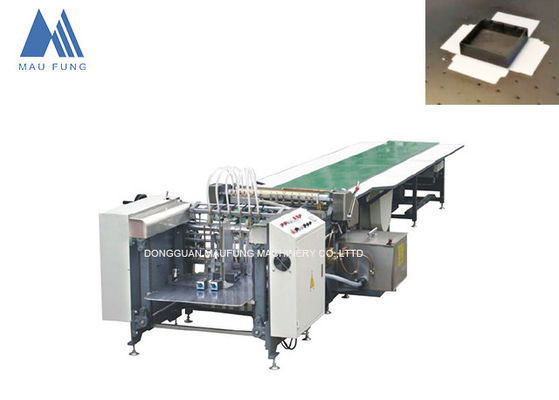

Auto Paper feeding Big Size Rigid Box Paper Pasting Machine , Rigid Box Making Machine MF-SJ850A
This model is used for rigid box paper gluing. It consists of three parts:
Paper Feeding Part:
Big paper loading table which will rise automatically.
Auto paper feeding by high quality sucker.
Gluing Part:
Easily adjust the gluing rollers, even gluing and prevent paper from wrinkling.
With heating function for hot melt glue
Good temperature controlling system ensures proper viscosity.
Conveying Part:
The speed and pause time could be adjusted.
| Model | MF-SJ850A |
| Voltage | 380V/50HZ |
| Power | 10.9KW |
| Speed | 70-40 pcs/min |
| Paper width | 80-800MM |
| Paper Length | NO limited |
| Sheet Thickness | 80-200g |
| Working Table Dimension | 800*840mm |
| Convey Belt Length | 5000mm |
| Machine Dimension | 1800*1500*1000mm |
| Machine Weight | 1200kg |
