Product Details:
|
| Model: | MF-540B | Speed: | 900- 1500 PCS/h |
|---|---|---|---|
| Max Size: | 500*400*130mm | Min Size: | 80*60*10mm |
| Voltage: | 220V,1PH | Warranty: | 12 Month |
| Industrial Use: | Gift Box, Luxury Box Making, Comestics Boxes | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support |
| High Light: | Gift Box Making Machine,Gift Box Forming Machine,Rigid Box Forming Machine with size auto adjusting |
||

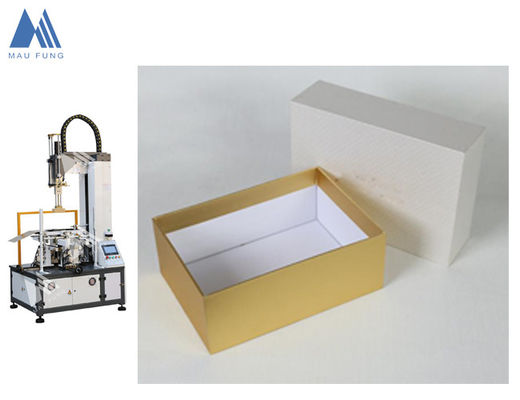

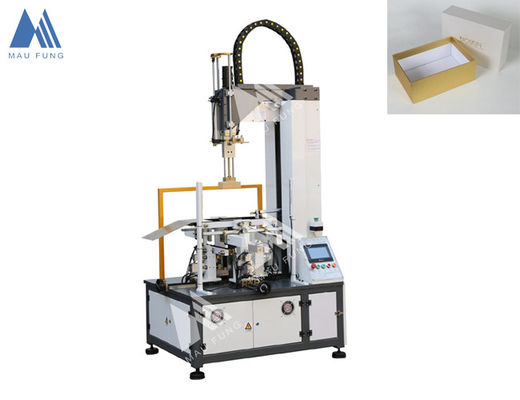

Automatic Rigid Gift Box Making Machine Comestics Boxes Forming Machine MF-540B
Rigid Box Forming Machine MF-540B is an ideal automatic equipment for making greyboard rigid boxes. It needs manually places the box on the mold, the machine will automatically wrapps box, folds corner edge, forms box and presses bubble at one time. With speed 900-1500 pcs per hour, the production effeciency is greatly improving, the production cost is greatly reduced.
|
Model |
MF-540B |
| Box Size(max.) | 500*400*130mm |
| Box Size(min.) | 80*60*10mm |
| Power | 2.2KW |
| Voltage | AC 220V |
| Speed | 900-1500pcs/h |
| Air Pressure | 0.6-0.8MPa |
| Net Weight | 1150KG |
| Machine Dimension | 1180*920*2000mm |
| Glue Type | Hot-melt Glue(Medium Dry) |
1. With servo motor and PLC programming system;
2. Three modes:One time folding, two times folding and three times folding (deeply folding)
3. With problem alarmling system. Machine will stop and show the problem occured.
4. All controlling spare parts adopt international high-end brand, with low fault and high precision;
5. It has two modes of operation: manual and automatic.
